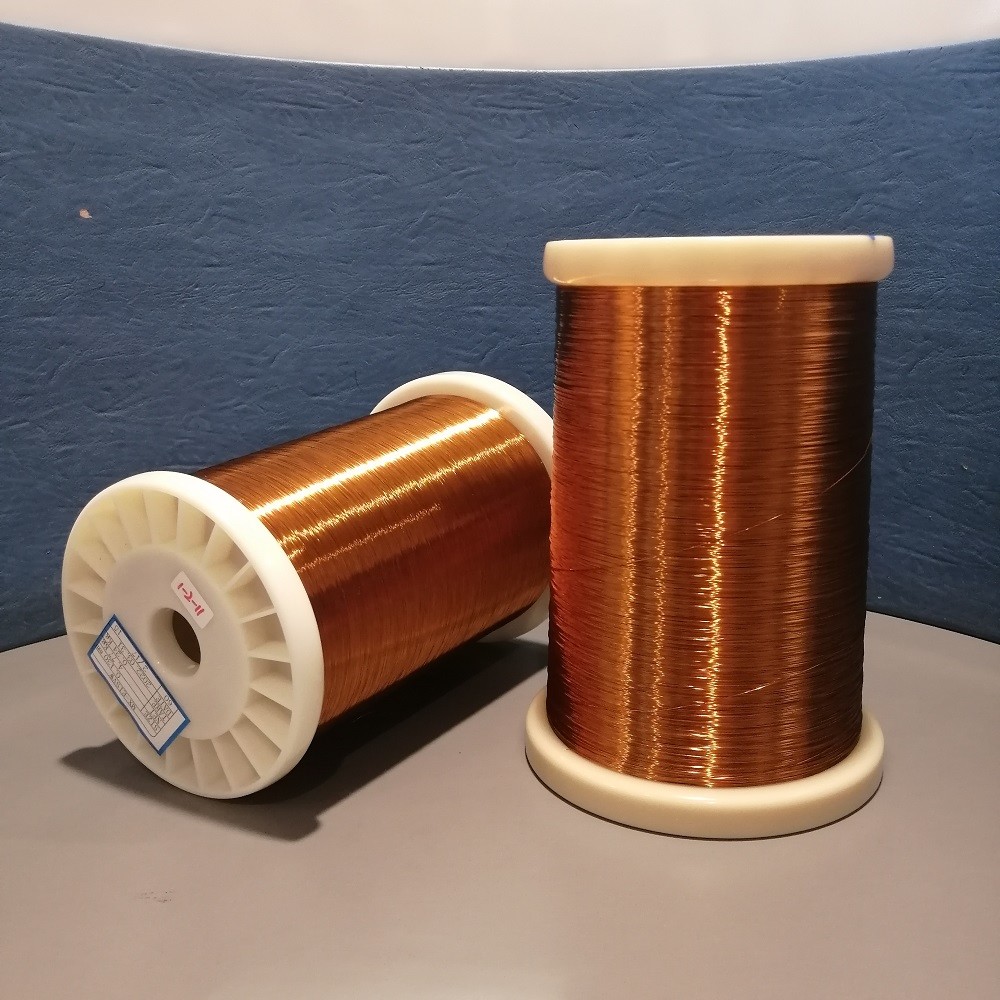

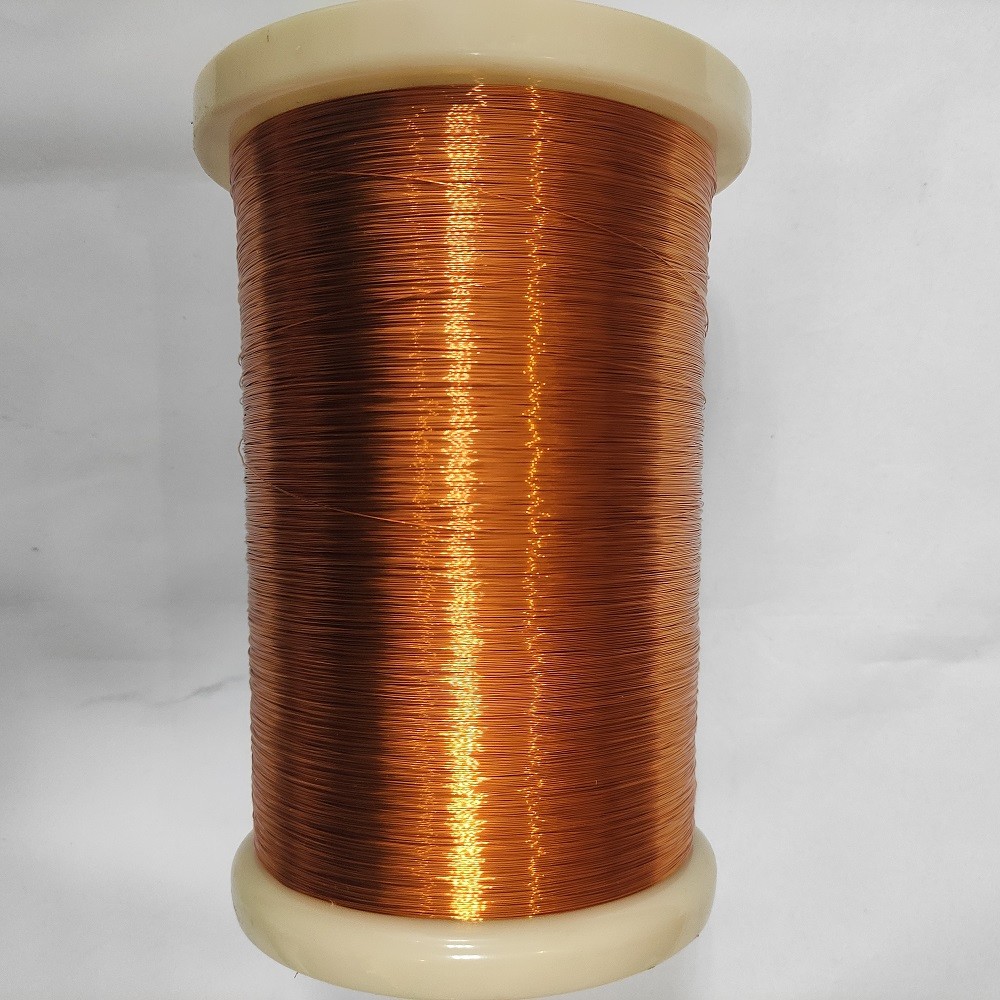

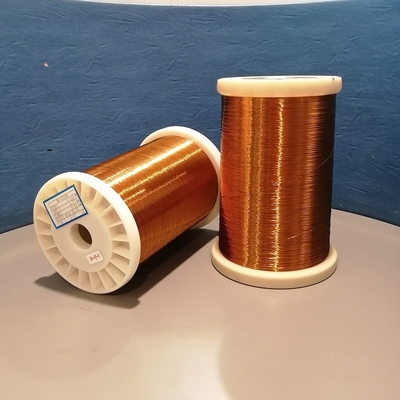

Superfine Insulated Enamel Coated Copper Wire 0.15mm Self Adhesive Hollow Motor
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-2B/220-0.15 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011241150 | Product Name | Self Bonding Enameled Wire |
|---|---|---|---|
| Film Grade | 2B | Size | 0.15mm |
| Bonding Method | Hot Wind | Thermal Class | 200-220 |
| Advantage | Superfine | Material | Red Copper |
| High Light | Superfine enamel coated copper wire,0.15mm enamel coated copper wire,Hollow Motor enamel insulated copper wire |
||
Product Description
0.15mm Self Adhesive Enameled Wire In Various Colors Manufacturer Provides Straightly For Hollow Motor
Frequency conversion enamelled copper round wire (corona resistant enamelled copper round wire) :
The coating is added into the shielding layer of imported organic coating (titanium, silicon and other solid metal oxides), and the use of high purity red copper. The product can work continuously in 200° C and 220° C environment, in addition to excellent high temperature resistance, radiation resistance, high strength wear resistance, but also has excellent valuable corona resistance performance, this performance is used to improve partial discharge performance, prolong the service life of frequency conversion motor. Therefore, it is widely used in all kinds of variable frequency motor, lifting motor, elevator motor and so on.
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
| Model Number | AISVWY3-2B/220-0.15 | Brand Name | CHINGCUNG |
| Product Name | Self bonding Coated Copper Round Wire | Place of Origin | Zhejiang,China |
| Conductor diameter | 0.15mm | Delivery Time | 3-10 work days |
| Bonding Method | Hot-Air | Packing | Plastic Spool/carton |
| Thermal Class | 220 | OEM | Yes |
| Conductor Material | 2B | Feature | High tension strength |
| Insulation Material | Red Copper | Application | Motor Winding Wire |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
