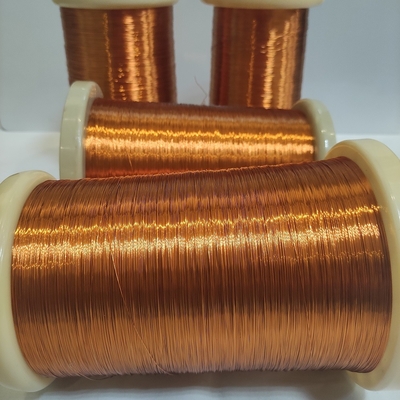

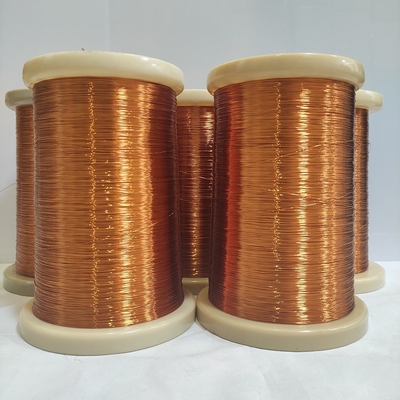

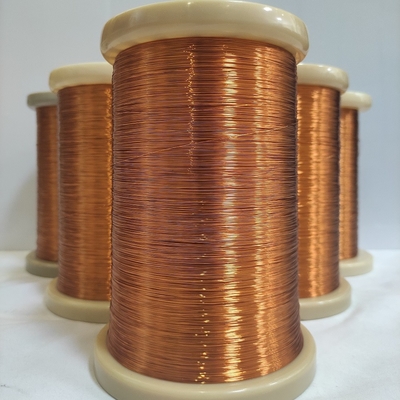

Awg30 Enamel Coated Magnet Wire ANSI Hot Air Type Self-Adhesive 0.25mm Class 220
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-2B/220-0.25 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011241125 | Product Name | Ultra Fine Magnet Wires |
|---|---|---|---|
| Film Grade | 2B | Size | 0.25mm |
| Insualtion Type | Polyesterimide | Thermal Class | H |
| Advantage | High Quality | Color | Normal |
| High Light | Awg30 enamel coated magnet wire,ANSI enamel coated magnet wire,0.25mm Copper Enameled Wire |
||
Product Description
Awg30 ANSI Hot Air Type Self-Adhesive Wire 0.25mm Class220 Pure Copper Enameled Wire
Advantages of enameled flat wire:
1. High slot full rate
2, the conductor section accounted for more than 97% of the volume
3. Good winding property, strong bending resistance, no cracking of film winding.
4. The thickness of the edge and corner paint film is similar to that of the surface film, which is conducive to the insulation maintenance of the user's coil.
Applications: Inductor, transformer, filter, transformer, motor, voice coil, solenoid valve.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification:
| Model Number | AISVWY3-2B/220-0.25 | Brand Name | CHINGCUNG |
| Product Name | Ultra Fine Magnet Wires | Place of Origin | Zhejiang,China |
| Conductor diameter | 0.25mm | Delivery Time | 3-10 work days |
| Bonding Method | Hot-Air | Packing | Plastic Spool/carton |
| Thermal Class | 220 | OEM | Yes |
| Conductor Material | 2B | Feature | High tension strength |
| Insulation Material | Red Copper | Application | Motor Winding Wire |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
