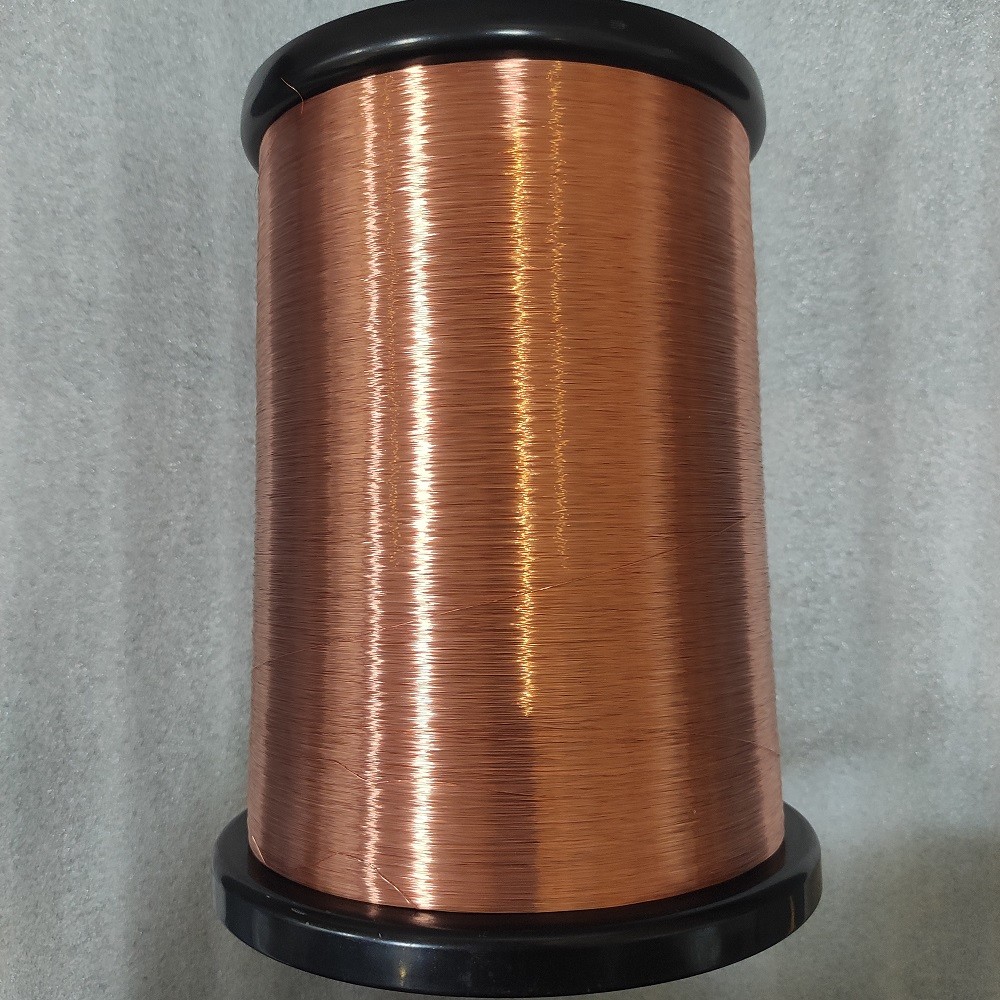

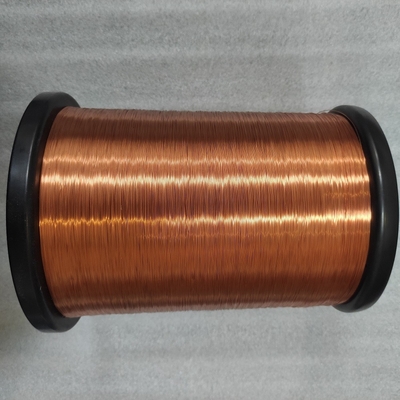

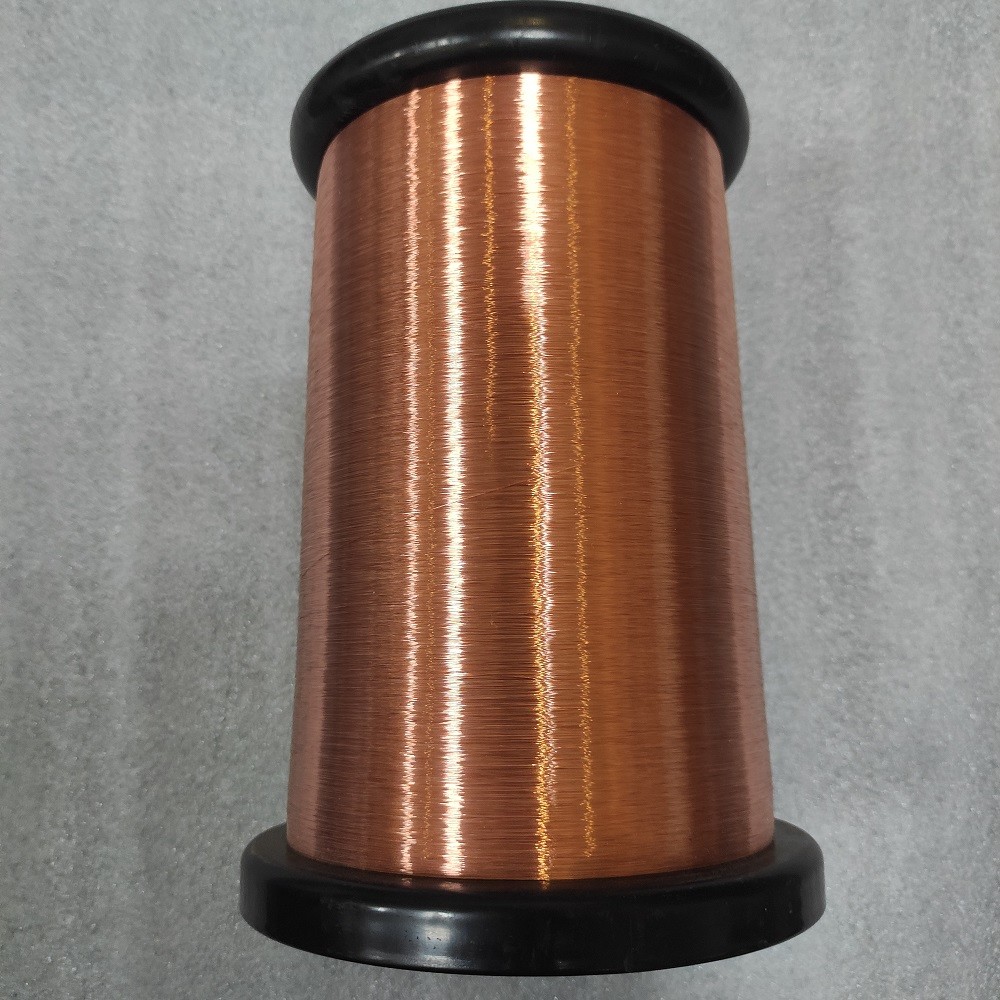

0.16mm Class 220 Enamel Covered Wire Polyamideimide Composite Polyester

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number AISVWY3-1B/220-0.16
Minimum Order Quantity 20 Kg
Price Negotiation
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No 30011240160 Product Name Special Magnet Wires
Film Grade 1B Size 0.16mm
Insualtion Type AIW Thermal Class 220
Advantage High Quality Color Nature And More
High Light

0.16mm Enamel Covered Wire


Polyamideimide Enamel Covered Wire


Polyester enameled copper wire

Leave a Message
Product Description

0.16mm Class 220℃ Enamel Covered Wire Polyamideimide Composite PolyesterWith Full Thermal Rating Range


Ultra thick paint film wire: This is a kind of enamelled wire with ultra thick paint film, usually direct welded polyurethane / nylon composite enamelled copper round wire, including the widely recognized 0uew / y, QPN and hex wires. It is used in the field of network transformers with high withstand voltage and high processing resistance requirements.


1. Wire diameter range (awg50-26 / 0.028-0.400mm).

2. We can provide various kinds of enameled wires such as thickened paint film, ultra thick paint film and extra thick paint film to meet different pressure resistance requirements.

3. It has excellent functional layer and is suitable for automatic winding. After winding, it still maintains high thermal, electrical, mechanical and chemical properties.

4. According to different reflow conditions, heat-resistant grade 180 degree enameled wire can be selected; Wave soldering and pull soldering can choose enameled wire with heat resistance grade of 155 degrees.

5. Multiple colors are available: natural color (n) / red (R) / green (g) / blue (b) / purple (V) / Black (BK) / Brown (BR).

Applications: network transformer / Ethernet filter, broadband products (xDSL transformer, switch, router), connectors, 10G network transformer / filter, module power supply, micro transformer, etc.


Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."



Model Number AISVWY3-1B/220-0.16 Brand Name CHINGCUNG
Product Name Special Magnet Wires Place of Origin Zhejiang,China
Conductor diameter 0.16mm Delivery Time 3-10 work days
Bonding Method Hot-Air Packing Plastic Spool/carton
Thermal Class 220 OEM Yes
Conductor Material 1B Feature High tension strength
Insulation Material Red Copper Application Motor Winding Wire


Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.


Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.


Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!


Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.


Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
