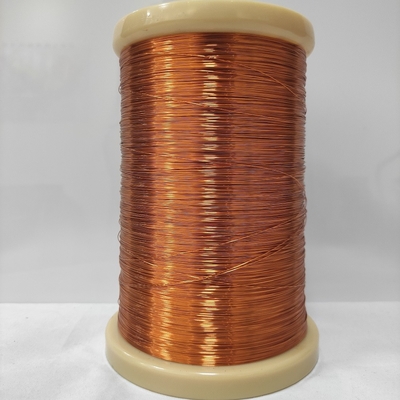

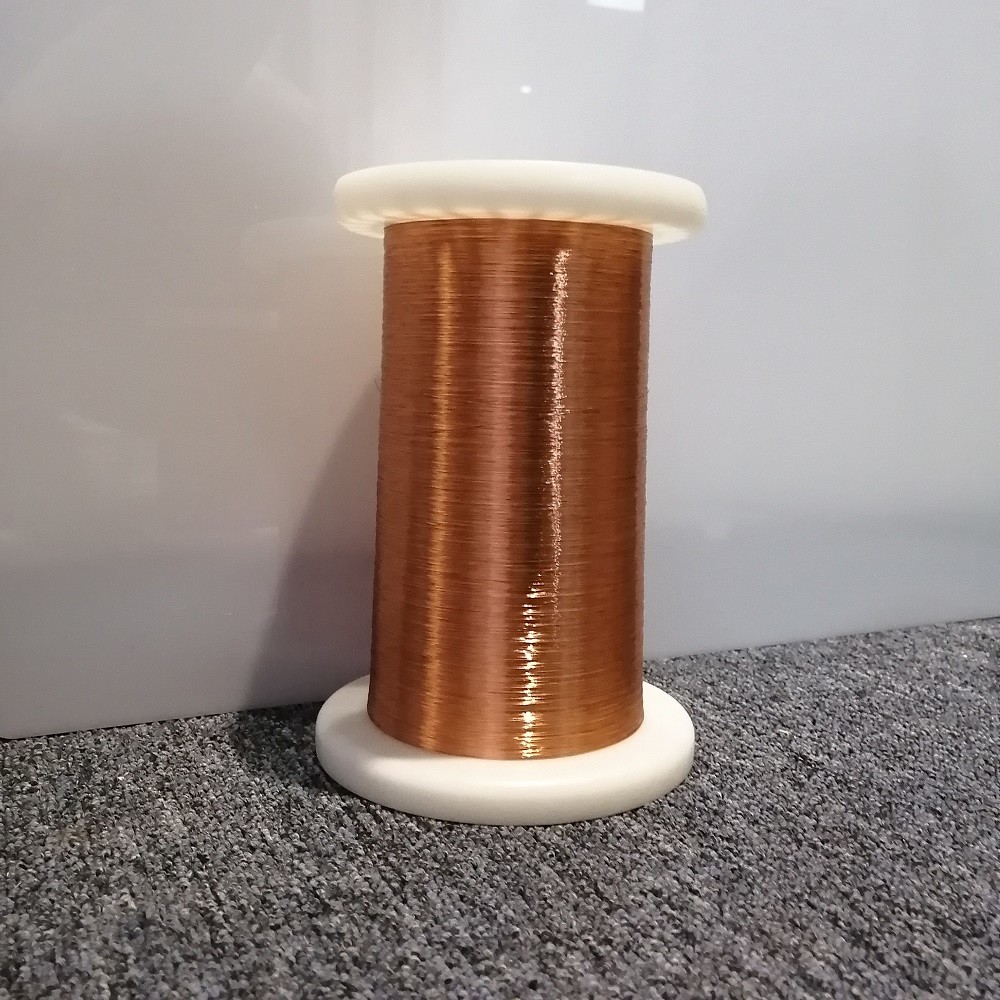

Air Coil Self Bonding Enameled Copper Wire Class 220 0.23mm
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-1B/220-0.23 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |

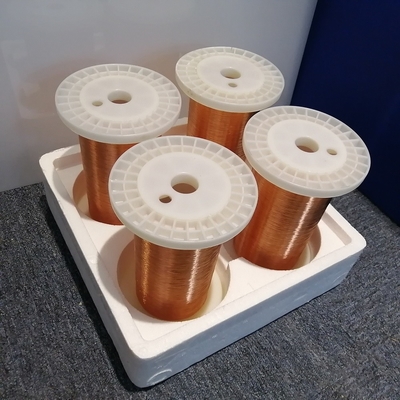

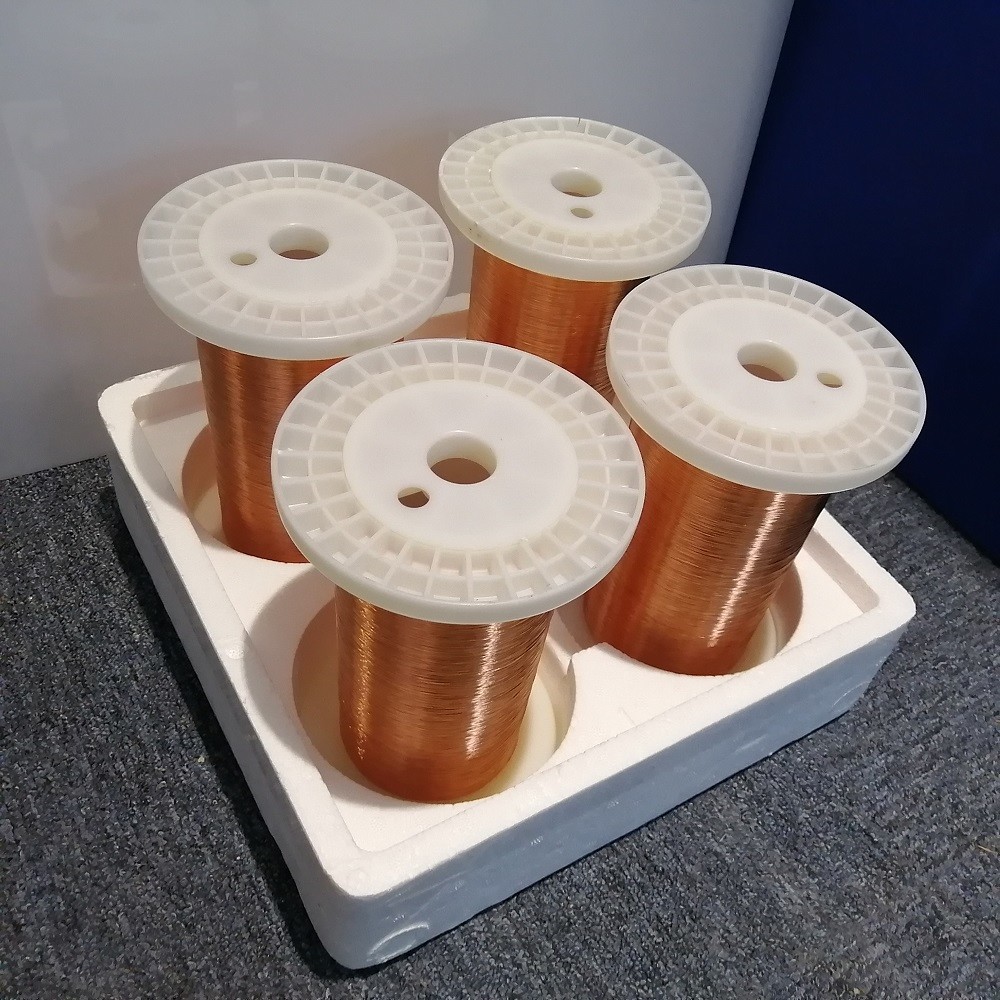

| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011240123 | Product Name | Special Magnet Wires |
|---|---|---|---|
| Film Thickness | 1B | Size | 0.23mm |
| Insualtion | Polyamideimide Composite Polyester Or Polyesterimide | Bonding Way | Hot Air |
| Advantage | Pin Hole：0 | Color | Natural |
| High Light | 0.23mm Enameled Copper Wire,Air Coil Enameled Copper Wire,Class 220 Self Bonding Copper Wire |
||
Product Description
Class 220 0.23mm Self Bonding Enameled Copper Wire Factory Cash Commodity For Air Coil
Weldable polyester imide enamelled copper round Wire (SEIW)
Specification range: from 0.02mm to 0.9mm(AWG52 to AWG19)
Heat resistance rating: 180
Product standard: IEC 60317-23, NEMA MW 77-C
Features:
1, 450℃- 470℃ welding
2, excellent insulation performance
3, excellent heat resistance
4, excellent mechanical properties
Applications: Automotive coil, sensor, special transformer, special micromotor, inductor.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification:
| Model Number | AISVWY3-1B/220-0.23 | Brand Name | CHINGCUNG |
| Product Name | Special Magnet Wires | Place of Origin | Zhejiang,China |
| Conductor diameter | 0.23mm | Delivery Time | 3-10 work days |
| Bonding Method | Hot-Air | Packing | Plastic Spool/carton |
| Thermal Class | 220 | OEM | Yes |
| Conductor Material | 1B | Feature | High tension strength |
| Insulation Material | Red Copper | Application | Motor Winding Wire |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
