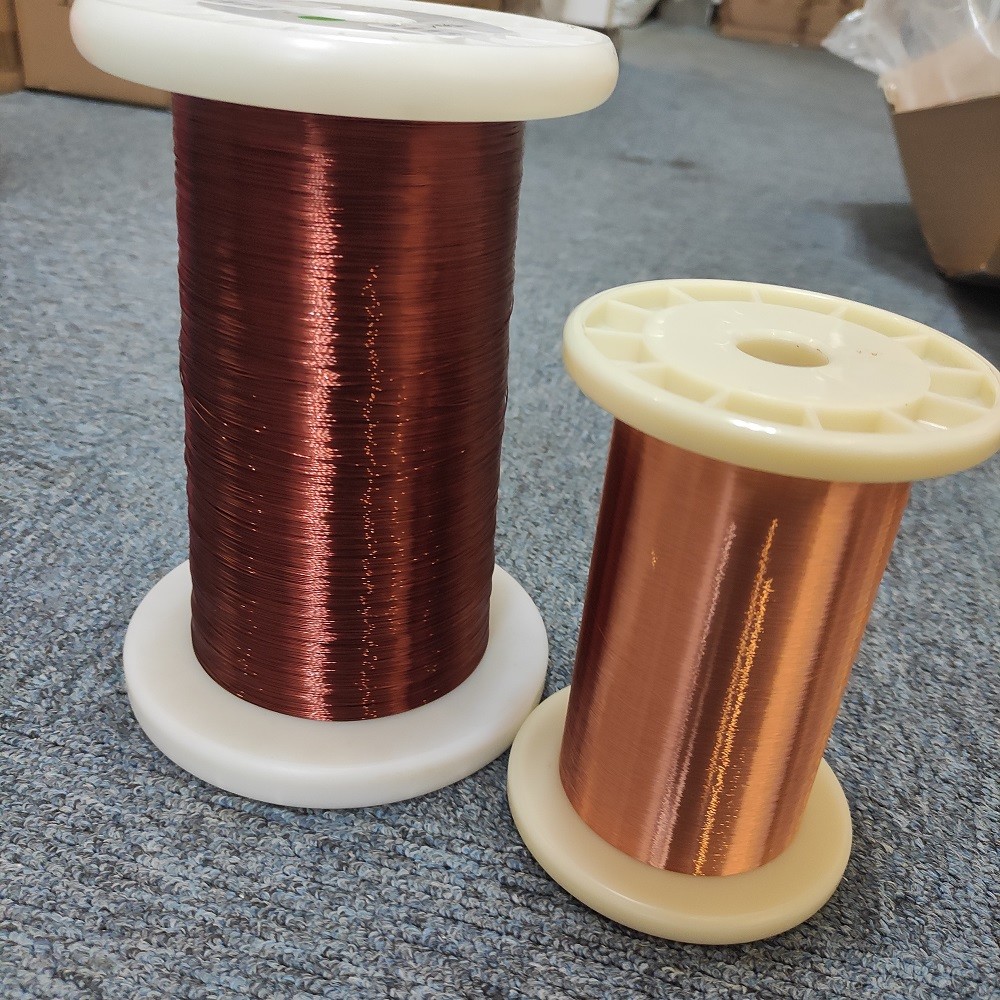

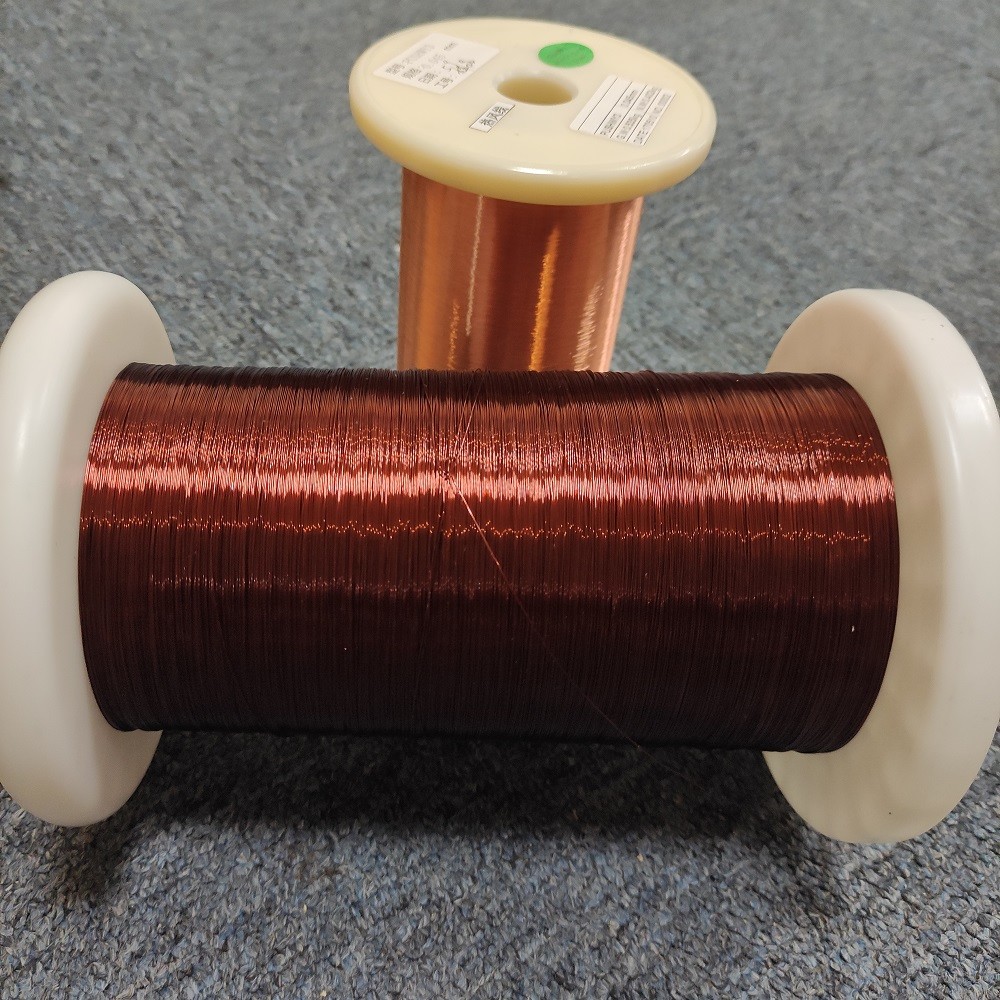

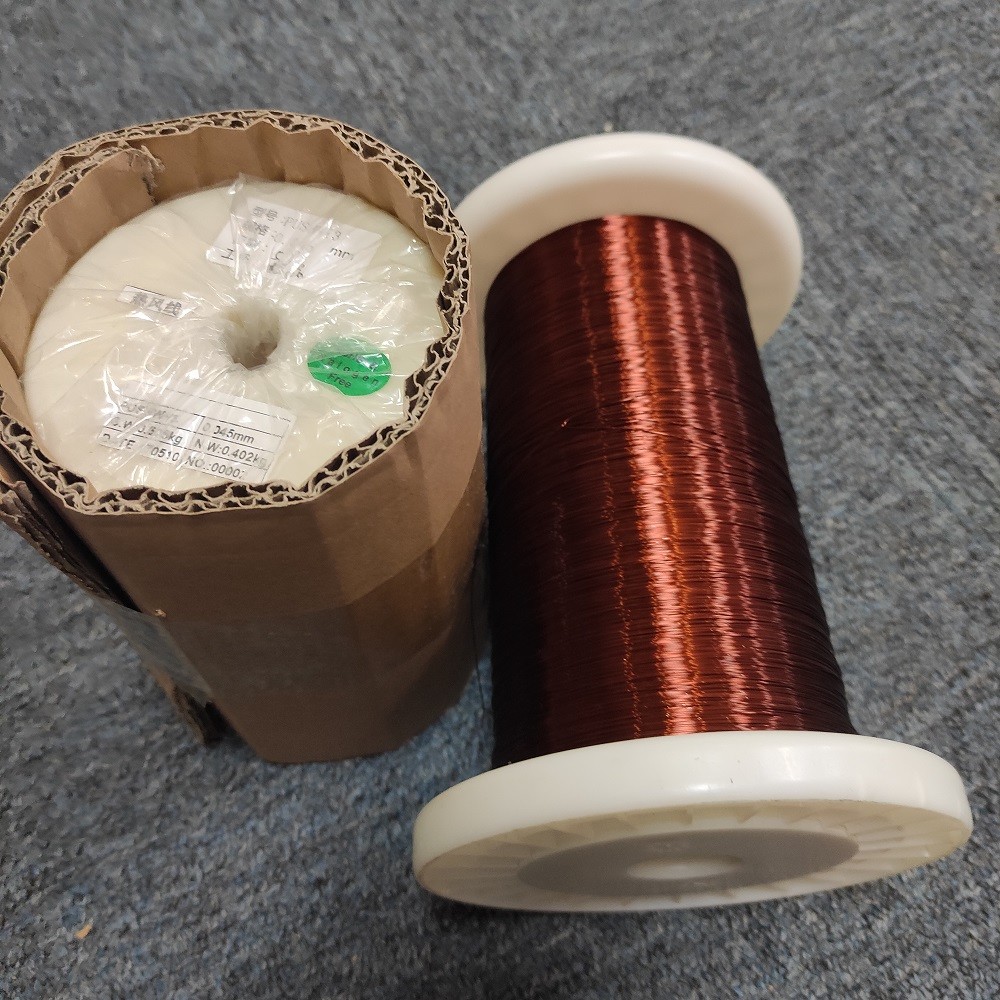

0.12mm Hot Air Self Adhesive Enameled Copper Wire Customize Paint Film Thickness

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number AISVWY3-GB/200-0.12
Minimum Order Quantity 20 Kg
Price Negotiation
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No 30011222120 Product Name Round Copper Self Bonding Enameled Wires
Material Cu Size 0.12mm
Insualtion AIW Bonding Hot Air
Advantage High Temperature Resistance Usage Transformers/Motors/Relays
High Light

Hot Air Enameled Copper Wire


Customize Paint Film Enameled Copper Wire


0.12mm Round Copper Wire

Leave a Message
Product Description

0.12mm Hot Air Self Adhesive Enameled Copper Wire Customize Paint Film Thickness


Characteristics of stranded wire:
1, good softness
The parallel wire harness without stranded is in bending, when the wire harness lateral single line is stretched, the wire harness lateral single line is stretched, the inner single line is compressed, both produce resistance to bending, in the process of bending and straightening, a single line is subjected to a bending deformation. And the winding when bending, because each strand is a spiral winding around the week of stranded wire line, when the winding bend, each strand is stretched and compressed at the same time, the compression part moved towards the tensile area, only need to overcome the single move when the friction, the friction force than single wire in the parallel wire bending resistance of much smaller.
For the same specification of strand, the smaller the pitch, the shorter the single line moving distance, the smaller the friction force, and the softer the strand. The more strands of the same cross-sectional area, the softer the strands. GB/T3956 stipulates that the number of the first, second, fifth and sixth single wire roots of the same section increases in turn, and its softness increases in turn.
2, high reliability
When a single wire is used as the conductor of a wire or cable, the reliability of a single wire is reduced by defects and material inhomogeneity caused by the manufacturing process. The defects can be dispersed and the reliability of the wire can be improved obviously by using multiple single stranded cores. This is especially true for single wire joints.
3. High intensity
The strength of a single wire with the same cross section is improved compared with that of a single stranded wire. For the same material, the thinner the wire diameter, the higher the tensile strength. Therefore, the comprehensive pulling force of the stranded wire is greater than the pulling force of a single wire with the same section.
4, good stability
When the strand is bent, the position of each single strand is alternately in the upper elongation zone and the lower compression zone of the strand. The single strand will not produce elongation and compression, and will not change the position of the single strand. When the parallel harness is bent, the upper single line is stretched and embedded in the harness, and the lower single line compresses toward the center of the harness due to compression, so that the shape of the harness changes.


Our main application fields incude:
High temperature resistant self-bonding wires for aviation; Self-bonding wires for speakersin cars, voice coils, telephones and computers; Self-bondingwires for motors in medical instruments, precision instruments,electric tools, household appliances and robots, etc.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.



Model Number AISVWY3-GB/200-0.12 Brand Name CHINGCUNG
Product Name Special Magnet Wires Place of Origin Zhejiang,China
Conductor diameter 0.12mm Delivery Time 3-10 work days
Bonding Method Hot-Air Packing Plastic Spool/carton
Thermal Class 220 OEM Yes
Conductor Material 1B Feature High tension strength
Insulation Material Red Copper Application Motor Winding Wire


Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.


Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.


Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!


Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.


Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
