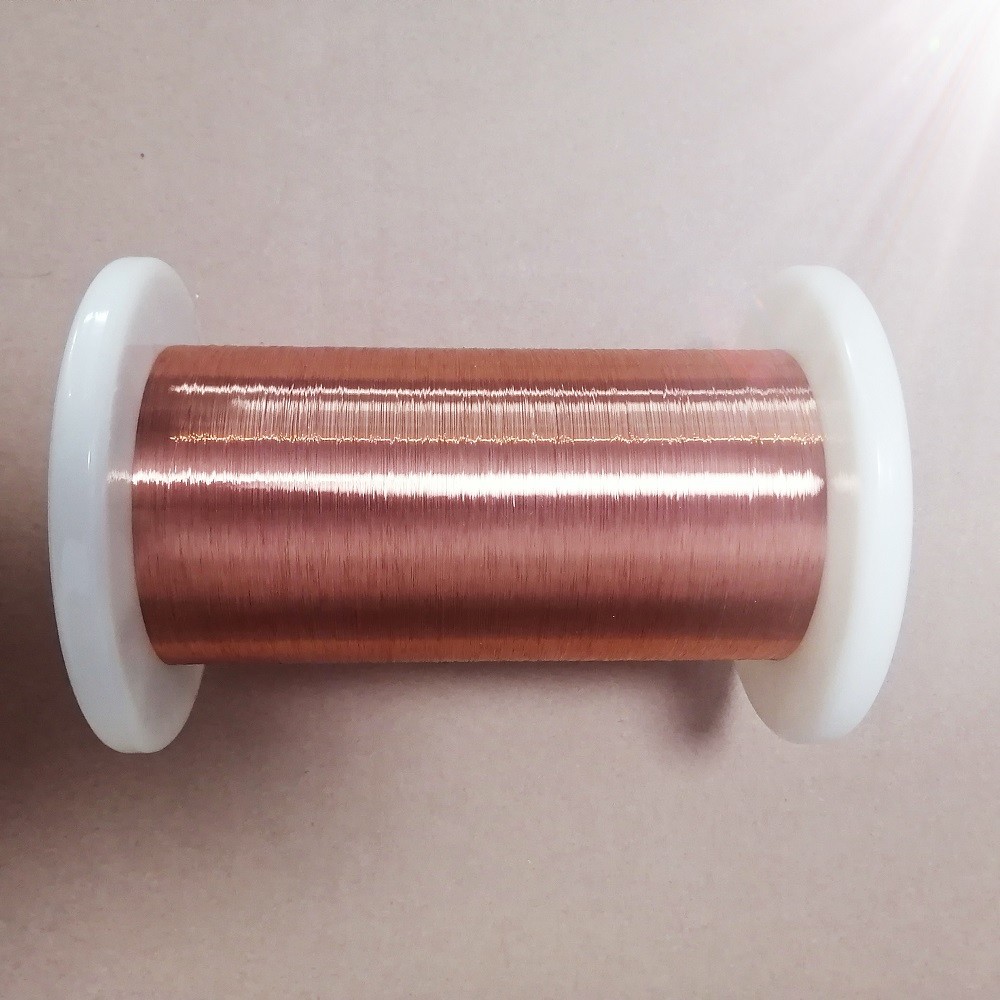

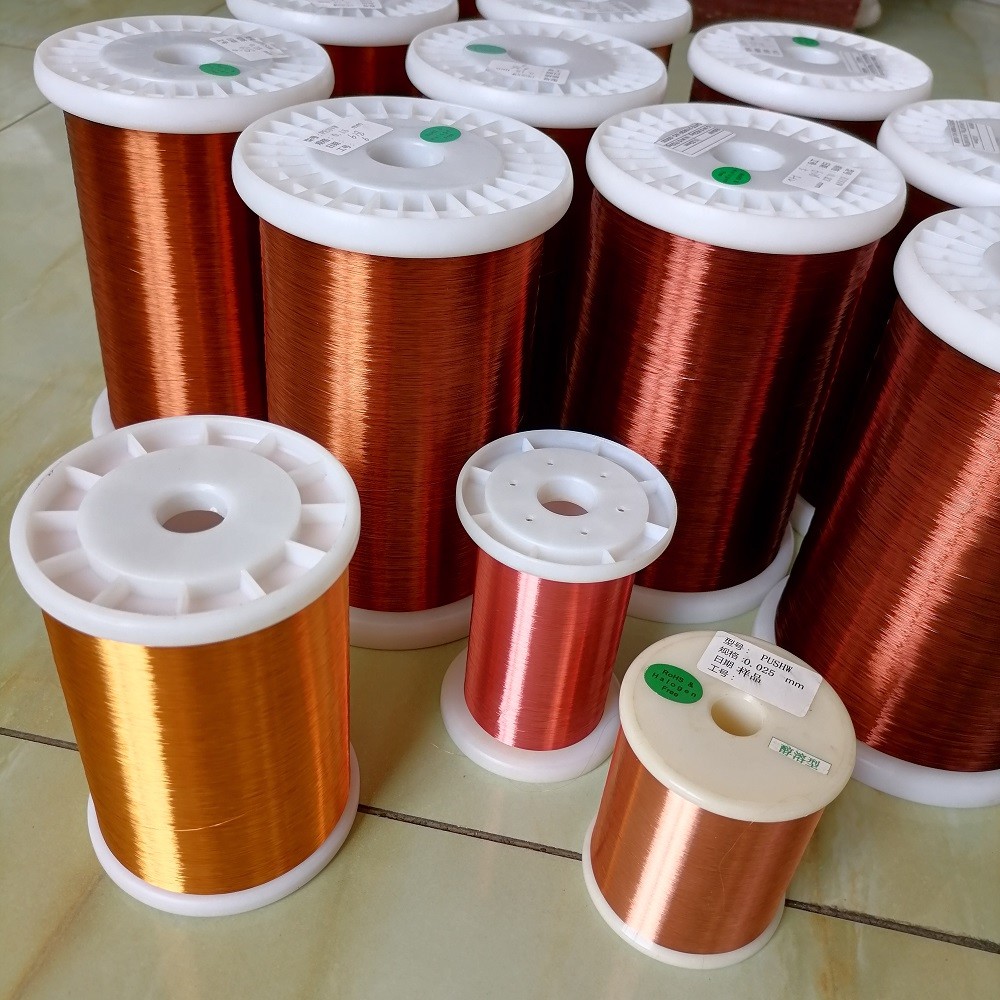

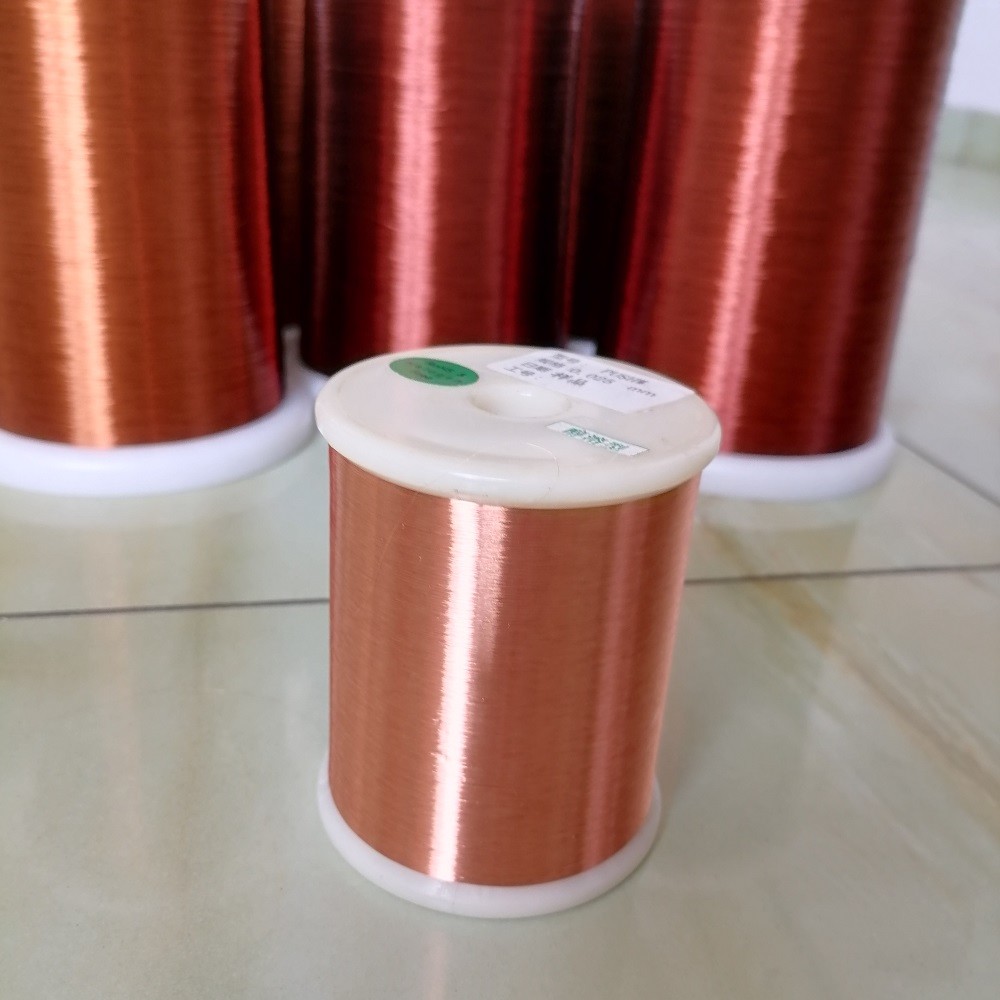

46 AWG Polyester Enameled Copper Wire Alcohol Soluble Solid Magnet Copper Wire

Place of Origin	Zhejiang, China
Brand Name	CHINGCUNG
Certification	UL/ISO9001/ISO14001/RoHS/Reach
Model Number	PESVW-GB/155-0.08
Minimum Order Quantity	30 Kg
Price	USD 14.45/Kg
Packaging Details	5 Kgs each roll, cartons.
Delivery Time	5-7 work days
Payment Terms	T/T
Supply Ability	50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Order No.	30011252080	Product Name	Enamelled Round Copper Wire
Size Range	0.04mm-0.12mm	Coating	Polyester
Insulation Material	Enameled	Bonding Way	Hot Wind/solvent
Certification	SGS	Conductor	Copper/cca
High Light	46 AWG Polyester Enameled Copper Wire , Alcohol Soluble Magnet Copper Wire , CHINGCUNG Polyester Enameled Copper Wire

Leave a Message

Product Description

Polyester Enameled Copper Wire 0.08mm Alcohol Soluble Solid Magnet Copper Wire

Product Description:

This kind of enameled wire can be used to make winding wire demanding light material, high electricity conductivity and good heat dispersing performance.

Features and Benefits:

a) Excellent thermal stability, excellent dielectric and mechanical properties.

b) Very good chemical resistance to common solvent and coolants.

c) Better sliding during coil insertion in slots (reduced friction factor).

d) High resistance to abrasion.

Specification:

Conductor	Overall diameter(mm)		Conductor Resistance	Elongation	Breakdown Voltage(V)
Diameter	Grade 2		(20℃ Ω/m)	(%)	Grade 2
	Upper limit	Lower limit			Lower limit
0,020	0,025	0,027	54,41	6	250
0,025	0,032	0,034	34,82	7	300
0,030	0,038	0,041	24,18	8	350
0,040	0,050	0,054	13,60	10	475
0,045	0,056	0,061	10,750	12	550
0,050	0,061	0,066	8,706	14	600
0,060	0,073	0,079	6,046	16	680
0,070	0,084	0,090	4,442	17	700
0,080	0,095	0,101	3,401	17	850
