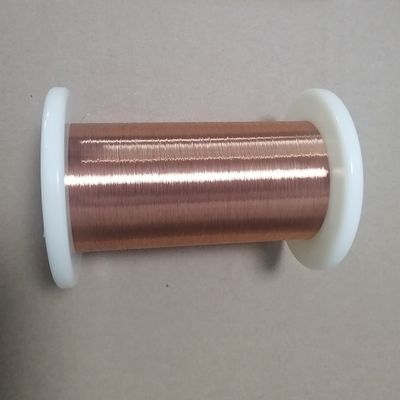

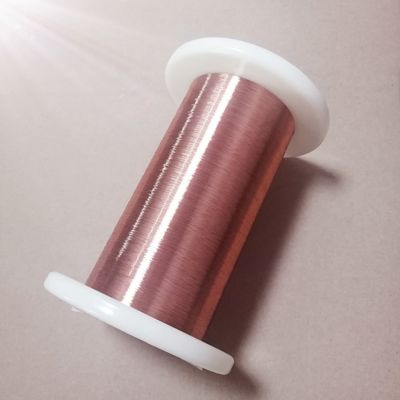

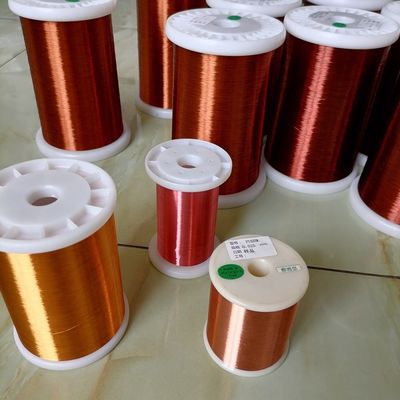

0.09mm Polyurethane Self bonding Enameled Copper Wire With Solid Conductor Magnet Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011252090 | Bond Coat | Polyurethane |
|---|---|---|---|
| Overall Diameter | 0.25-6mm | Rated Voltage | 300/500V 450/750V |
| Delivery Time | 2-15 Days | Packing | Plastic Spool |
| Conductor Material | CU/CCA/CCAM | Application | Heating |
| High Light | CHINGCUNG 0.09mm Enameled Copper Wire,39 AWG bondable magnet wire,39 AWG Enameled Copper Wire |
||
Product Description
0.09mm Polyurethane Self bonding Enameled Copper Wire With Solid Conductor Magnet Wire
Characteristic :
The product has excellent properties of mechanical strength,film adhesion and solvent resistance, light weight and flexibility. It is widely used in transformers, inductance coil,ballasts,electrical appliances, deflection coils in display, antimagnetized coils,induction cooker,microwave oven,reactor, etc.
Our Advantage:
1, Reliable product quality
Our partners have been manufacturing self-bonding enameled wires, household hardware, and small household appliances for over 10 years. Some even have more than 20 years of R&D investment, which insures stable and reliable quality and continuous improvement of our products.
Specification:
| Conductor | Conductor Resistance | Elongation | Breakdown Voltage(V) |
| Diameter | (20℃ Ω/m) | (%) | Grade 2 |
| Lower limit | |||
| 0,012 | 151,14 | 3 | 150 |
| 0,014 | 111,04 | 4 | 175 |
| 0,016 | 85,02 | 5 | 200 |
| 0,018 | 67,18 | 5 | 225 |
| 0,019 | 60,29 | 6 | 240 |
| 0,020 | 54,41 | 6 | 250 |
| 0,025 | 34,82 | 7 | 300 |
| 0,028 | 27,76 | 7 | 325 |
| 0,030 | 24,18 | 8 | 350 |
| 0,040 | 13,60 | 10 | 475 |
| 0,045 | 10,750 | 12 | 550 |
| 0,050 | 8,706 | 14 | 600 |
| 0,060 | 6,046 | 16 | 680 |
| 0,063 | 5,484 | 16 | 700 |
| 0,070 | 4,442 | 17 | 700 |
| 0,071 | 4,318 | 17 | 700 |
| 0,080 | 3,401 | 17 | 850 |
