Ultra Fine AWG 44 Solid Conductor Self Bonding Wire CCA

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PECCAW-GB/155-0.05
Minimum Order Quantity 30 Kg
Price USD 311.11/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No. 30021452050 Insualtion Polyester
Conductor Material Aluminum And Copper Application Inductance Coils
Size 0.05mm Delivery Timely Delivery Guaranted
High Light

Self Bonding Wire CCA


44 awg magnet wire


Solid Conductor Self Bonding Wire

Leave a Message
Product Description

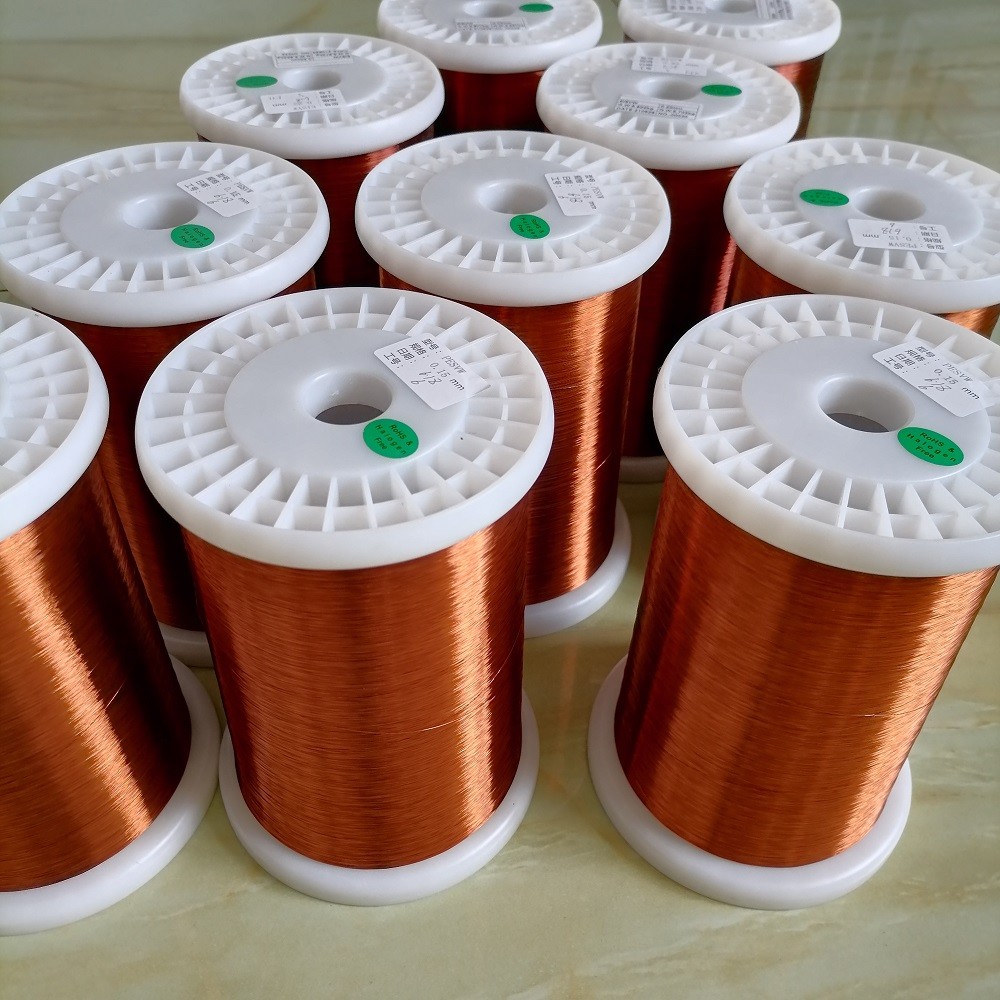

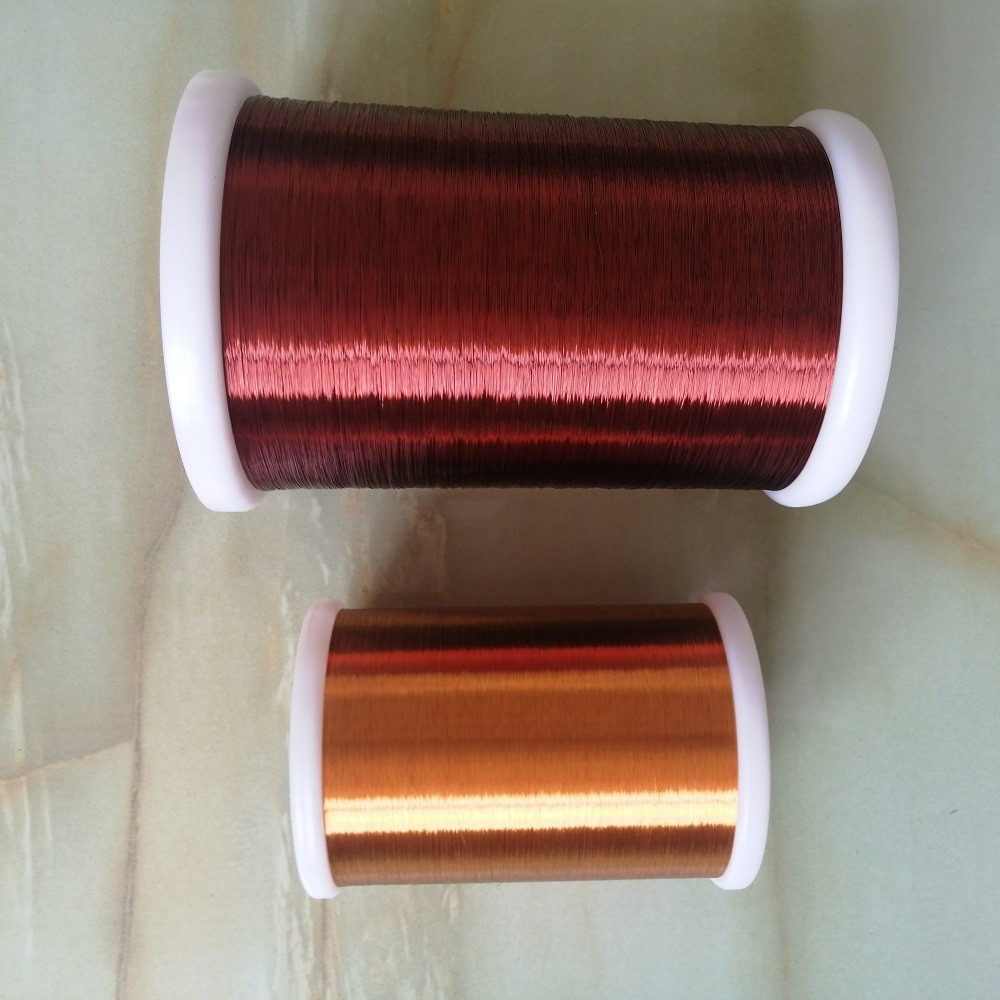

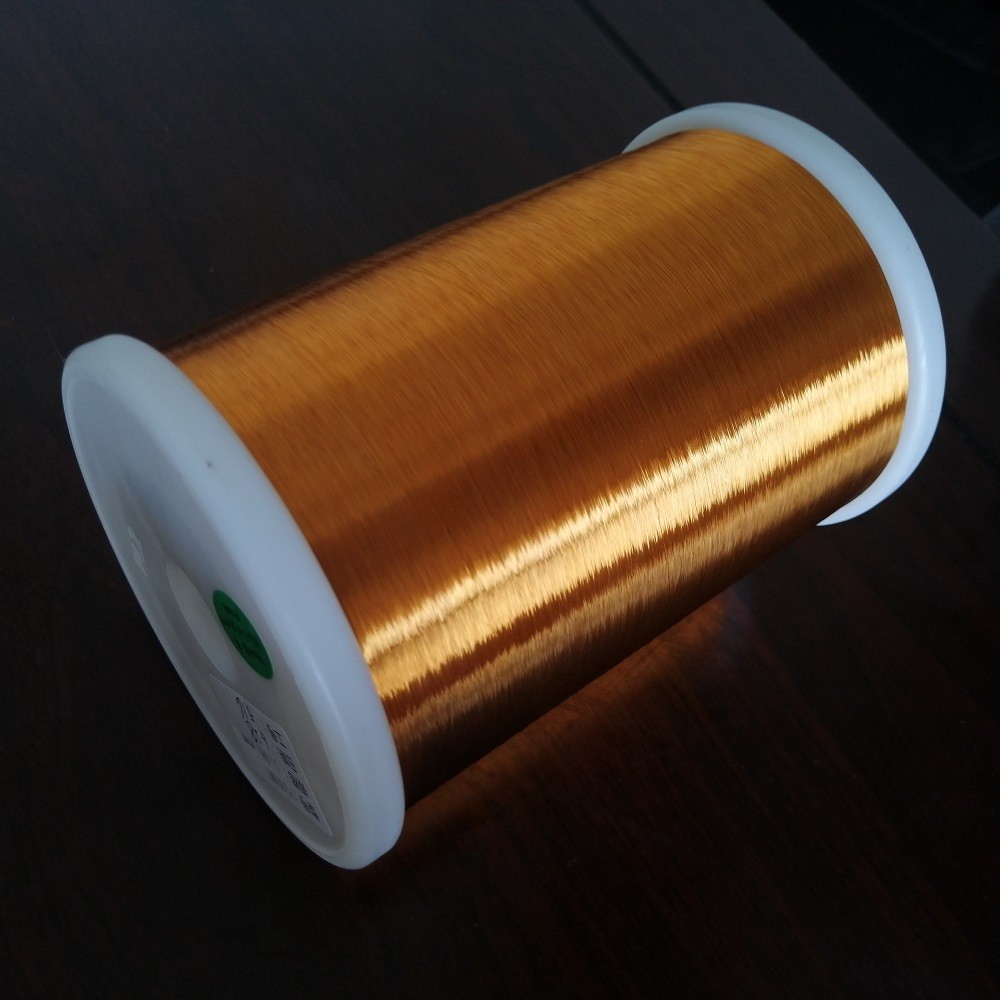

Ultra fine AWG 44 Solid Conductor Self-Bonding Wire CCA



Product Types of enameled copper clad aluminum wire for coils and windings :
Polyester Enameled CCA round wire(PEW);
Polyurethane Enameled CCA round wire(UEW);
Polyesterimide enameled CCA round wire(EIW);
Polyesterimide over-coated with polyamide-imide enameled CCA round wire(EIW/AIW).


We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
At the same time,we can also customize various.types ofself-bonding enameled wires to meet different national standardsfor customers, according to the technical parameters provided by customers.
Our factory is equipped with automatic manufacturing facilitiesand advanced testing and inspection equipments. We have anumber of patent certificates,strong technical strength.At thesame time, we also have perfect production management system and quality assurance system to maintain the stability and reliability of our products.




Model Number Conductor Material Conductor Diameter Bonding Method Thermal Class Shape
PECCAW-1B/155 CCA 0.04-0.90 Alcohol Soluble 155 Round
PECCAW-2B/155 CCA 0.04-0.90 Alcohol Soluble 155 Round
PECCAW-GB/155 CCA 0.04-0.90 Alcohol Soluble 155 Round
PECCAWY3-1B/155 CCA 0.04-0.90 Hot Air 155 Round
PECCAWY3-2B/155 CCA 0.04-0.90 Hot Air 155 Round
PECCAWY3-GB/155 CCA 0.04-0.90 Hot Air 155 Round



Q1:What's self-bonding enamelled copper wire?
A:Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.


Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.


Q3:What's the main market of your company?
A:We have customers all over the world.


Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.


Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
