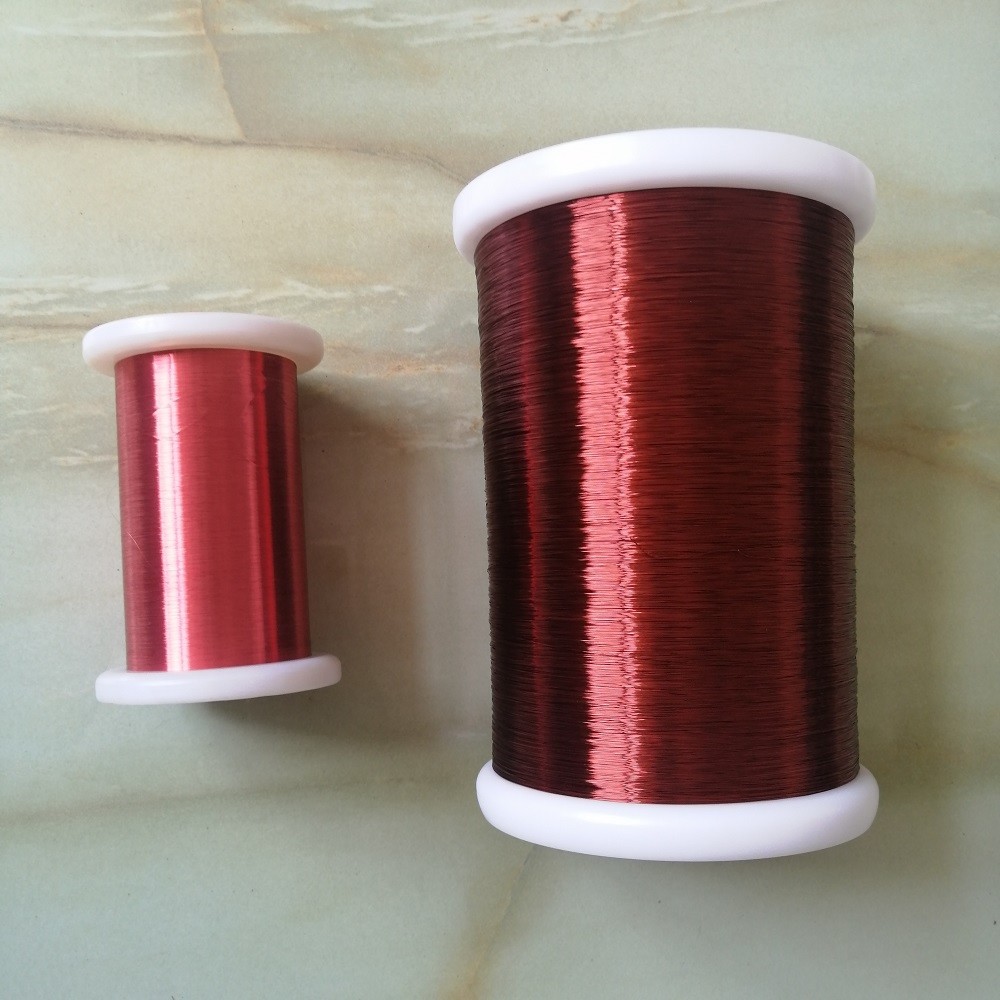

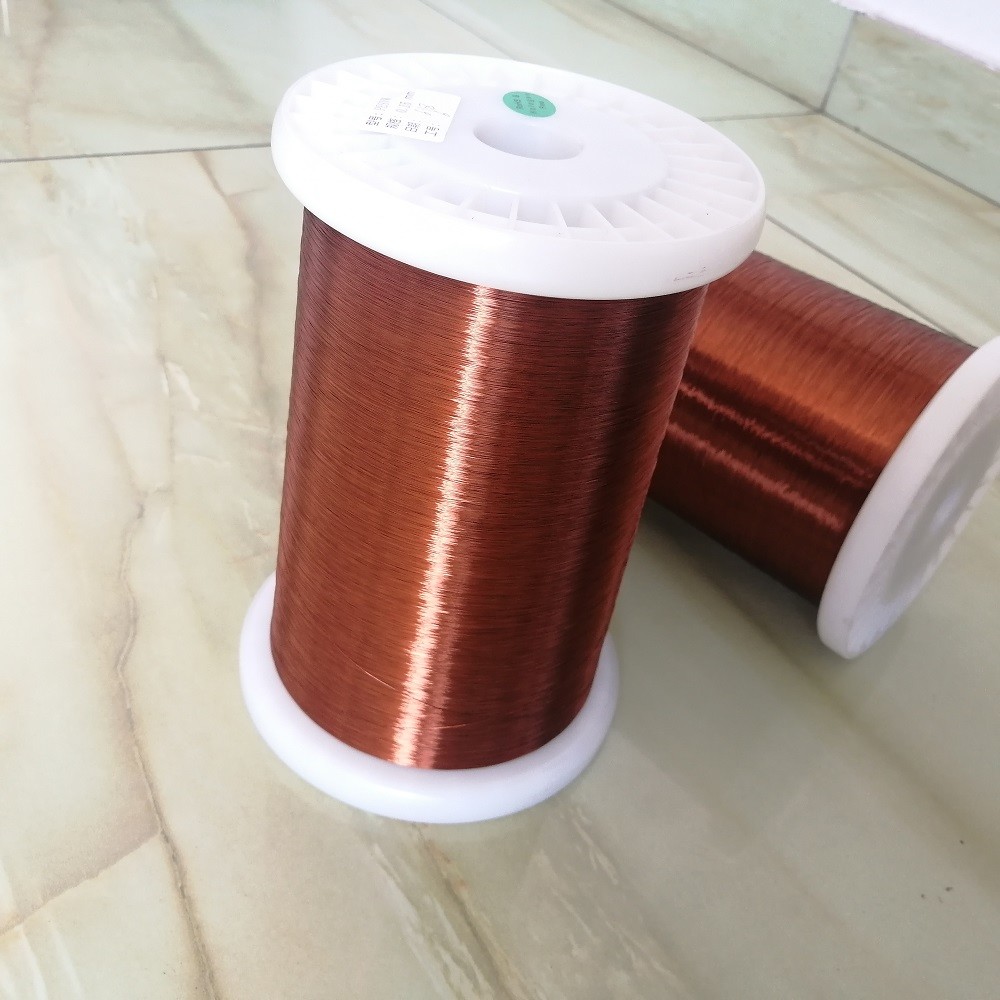

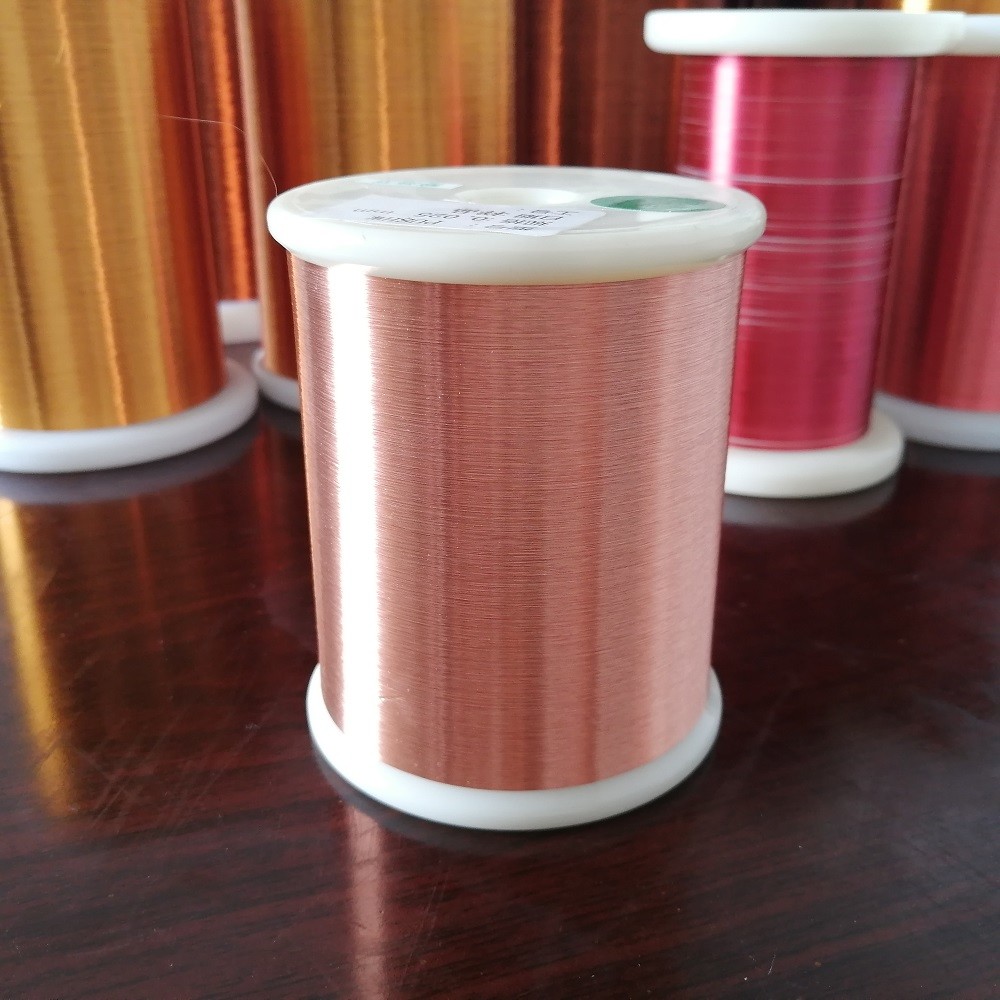

0.1mm Enameled Copper Clad Aluminum Wire With Self Bonding Layer Chemical Resistance
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PECCAW-GB/155-0.1 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 111.11/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021452100 | Product Name | Self Bonding Modified Polyester Enameled Round Copper Clad Aluminum Wires |
|---|---|---|---|
| Diameter | 0.1mm | Grade | 155 |
| Material | Polyester | Certification | NEMA/JIS/RoHS/ISO |
| High Light | 0.1mm Enameled Copper Clad Aluminum Wire,38 AWG magnet wire,41 SWG Enameled Copper Clad Aluminum Wire |
||
Product Description
Enameled Copper Clad Aluminum Wire With Self Bonding Layer Chemical Resistance
Advantage:
1-Low dielectric loss at high frequency;
For this Characteristic, the Polyurethane enamel wire are widely used in high frequency electrical appliances, such as high frequency inductor, high frequency transformer.
2-High temperatuer performance:
Thermal properties depend on the type of bottom coating. Temperatuer can be from 130-240 degree.
Application:
Electromagnetic Furnace Wire Disc,Drives for household appliances, mutual inductor,pole windings, power tools, coils for the speakers
Features:
By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification:
| Conductor Diameter(mm) | Resistance (Ω/m) | |
| MIN | MAX | |
| 0.018 | 60.46 | 73.89 |
| 0.020 | 48.97 | 59.85 |
| 0.022 | 40.47 | 49.47 |
| 0.025 | 31.34 | 38.31 |
| 0.028 | 24.99 | 30.54 |
| 0.032 | 19.13 | 23.38 |
| 0.036 | 15.16 | 18.42 |
| 0.040 | 12.28 | 14.92 |
| 0.045 | 9.705 | 11.79 |
| 0.050 | 7.922 | 9.489 |
| 0.056 | 6.316 | 7.565 |
| 0.063 | 5.145 | 5.922 |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
