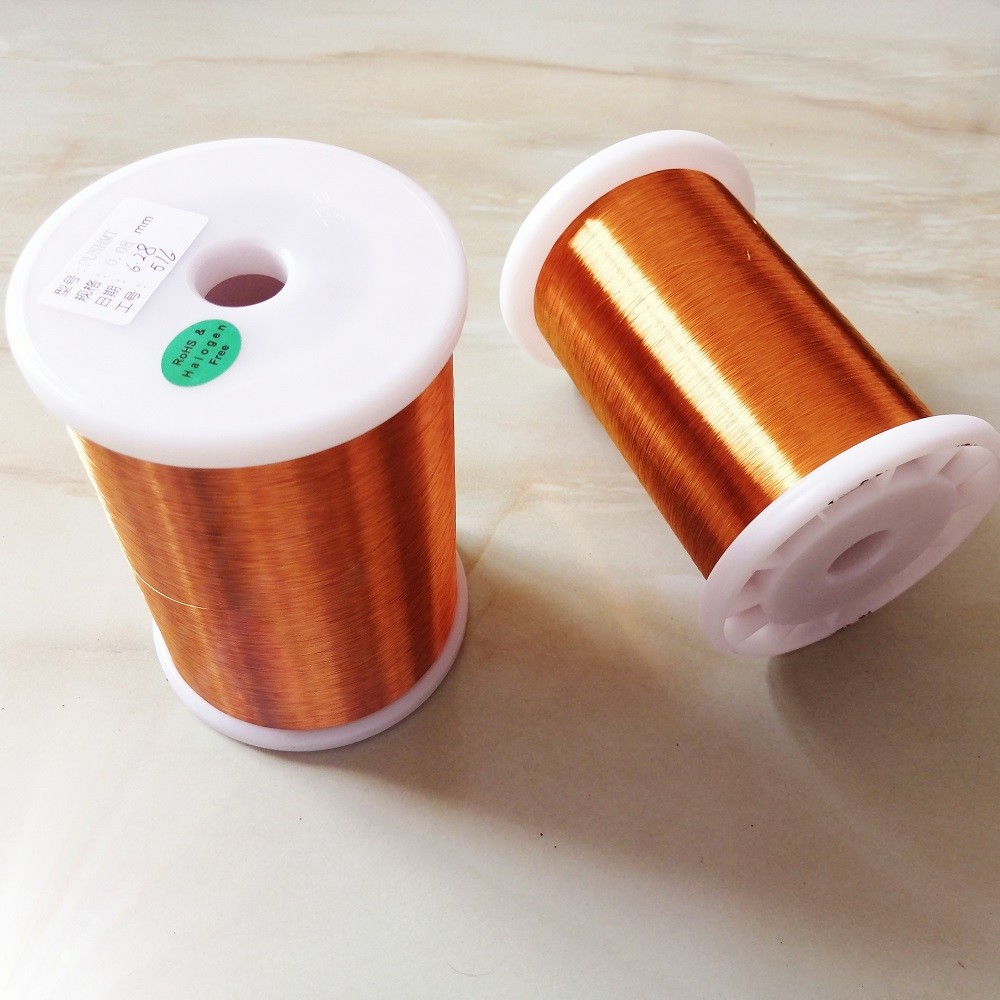

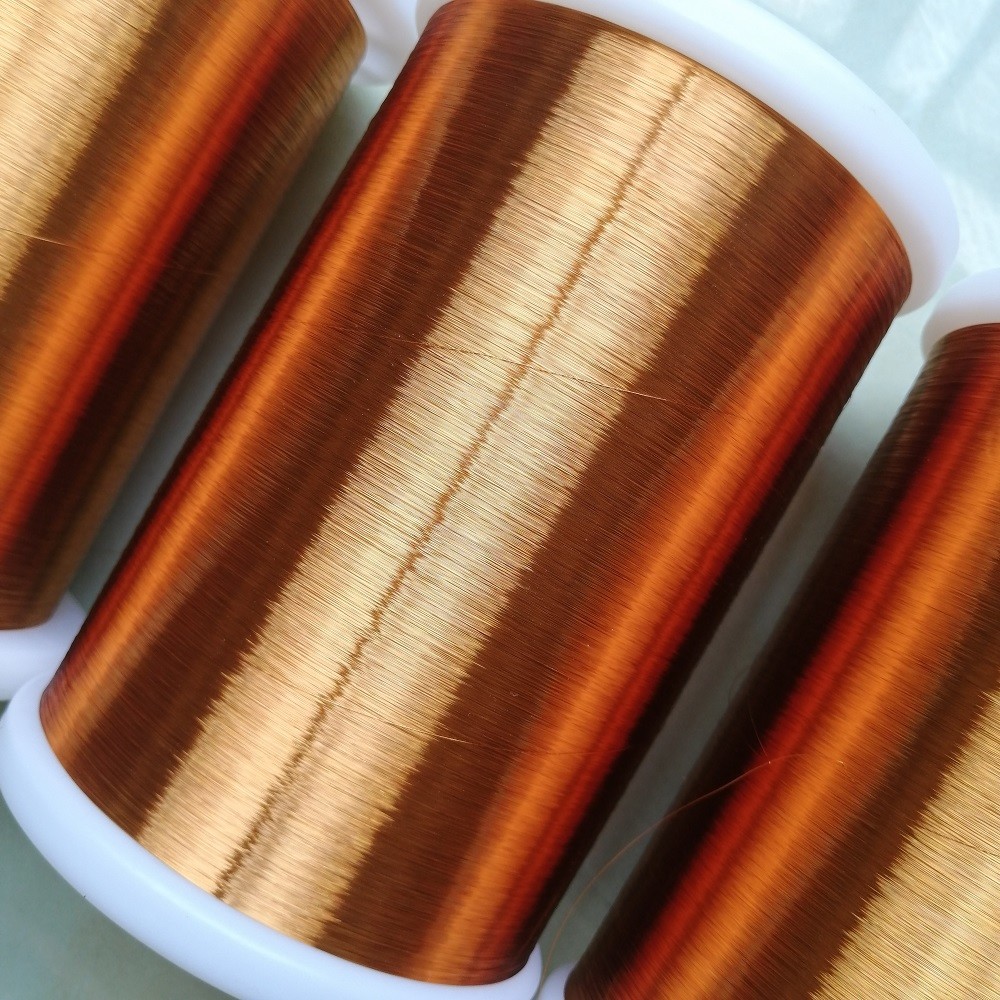

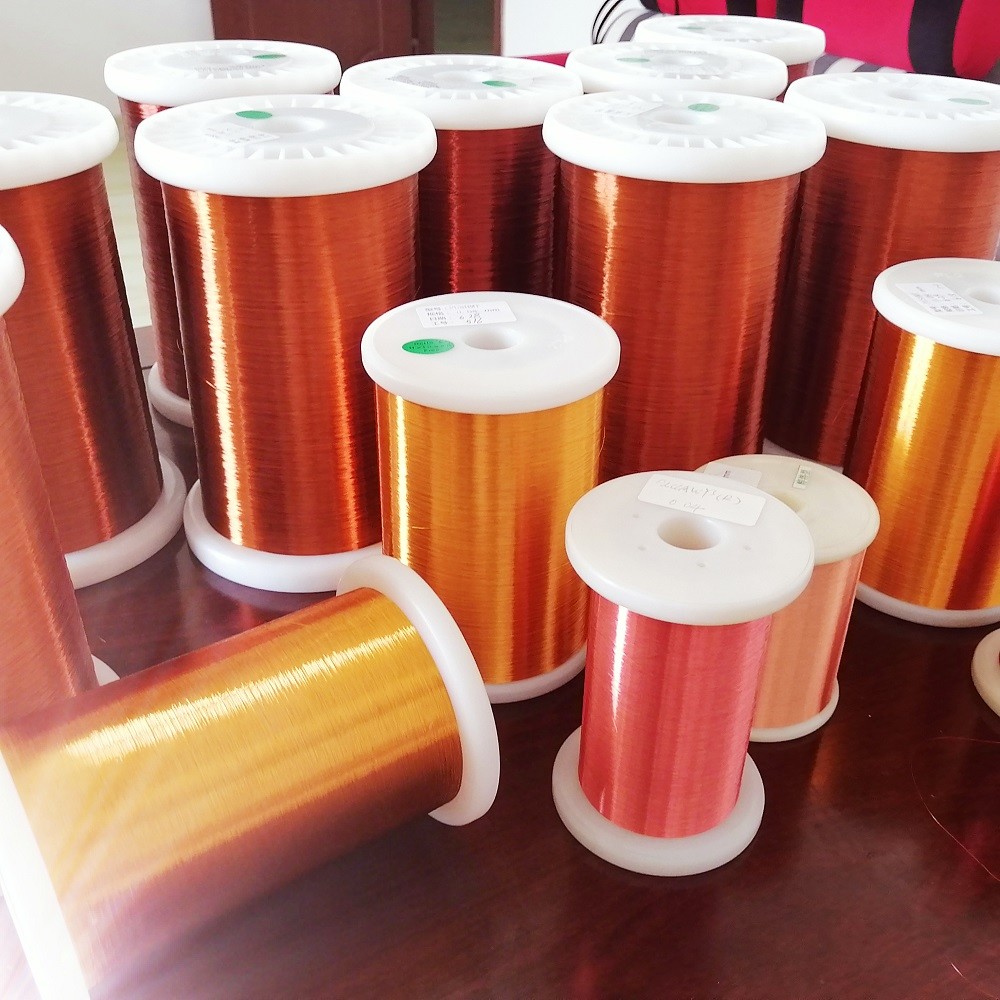

Winding Electrolytic Voice Coil Wire CCA Self Bonding Enameled Round Wires 0.05mm
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | EICCAW-1B/200-0.05 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 322.22/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021430050 | Coating | Polyesterimide |
|---|---|---|---|
| Type | Alcohol Soluble | Conductor Material | Copper And Aluminum |
| AWG SIZE | 46-19 | ||
| High Light | Electrolytic Voice Coil Wire,CCA Enameled Round Wires 0.05mm,Voice Coil Wire 0.05mm |
||
Product Description
Winding Electrolytic CCA Self Bonding Enameled Round Wires 0.05mm Ultra fine
Features:
Compared to copper conductors:
Higher Flexibility due to lower elastic modulus
63% material weight reduction due to lower specific gravity of CCA over regular copper
Compared to aluminum conductors:
Better corrosion resistance than aluminum due to copper layer
Lower resistance due to high electric conductivity of copper
Better Solder ability
Higher strength than aluminum
The company mainly produces various types of 0.04-0.90mm specifications and special enameled wire, its products meet the applicable standards of the industry (IEC60317, GB6109.JlS C3202, NEMA MW1000), and on this basis, according to different product needs and winding characteristics,Develop special enameled wire standards suitable for electromagnetic relay, micro special motor, transformer for smart meter, clock coil, solenoid valve, high voltage package and so on.The types of self-adhesive enameled wire are polyester line, polyurethane line, polyamide imide line, polyester imide line and so on.
Our company has carried out business with more than 100 overseas customers in more than 20 countries and regions such as Germany, Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East, Africa and so on.
Enameled wire production base is located in Jiaxing city, Zhejiang Province, the main production of various grades of heat self-adhesive wire, specializing in high temperature self-adhesive wire.The annual output of the company is about 15000 tons of enamel wire.The Chinese government's new policy of "One Belt, One Road" provides a new opportunity for industrial and production capacity cooperation with overseas countries and regions.Shanghai Husu Husu Electromechanical Technology Co., Ltd. sincerely hopes to establish and develop long-term and mutually beneficial cooperative relationship with you in the future.
Specification:
| Model Number | Conductor Material | Conductor Diameter(mm) | Bonding Method | Thermal Class | Brand Name |
| EICCAW-1B/200 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 200 | CHINGCUNG |
| EICCAW-2B/200 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 200 | CHINGCUNG |
| EICCAW-GB/200 | Copper Clad Aluminum | 0.04-0.90 | Alcohol Soluble | 200 | CHINGCUNG |
| EICCAWY3-1B/200 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 200 | CHINGCUNG |
| EICCAWY3-2B/200 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 200 | CHINGCUNG |
| EICCAWY3-GB/200 | Copper Clad Aluminum | 0.04-0.90 | Hot Air | 200 | CHINGCUNG |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
