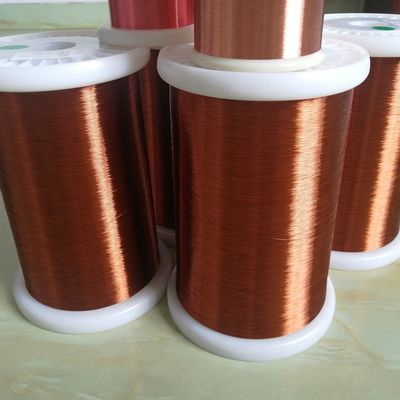

0.06mm Self Bonding Wire Varnished Copper Clad Aluminum Wire Class 200

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number EICCAW-1B/200-0.06
Minimum Order Quantity 30 Kg
Price USD 300/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No. 30021430060 Product Name High Temperature Polyesterimide Enameled Wire
Film Grade 2B Thermal Rating 180-200℃
Pin Hole 0 Conductor CCA
High Light

0.06mm Self Bonding Wire


Varnished copper clad aluminum wire


Self Bonding Wire Class 200

Leave a Message
Product Description

0.012 - 0.40mm Self Bonding Wire Varnished Copper Clad Aluminum Wire Class 200



1,Ton pure copper wire should offer 2.6-3.2 Ton CCA Wire ,
so reduce the raw material cost much for production factory .
2.According to pure copper wire , the impossibility to separate copper from CCA wire ,
3.CCA wire is more malleable than copper wire , unlike aluminum that would generate the insulation oxide , easier processing and good conductive properties


By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.



Model Number Conductor Material Bonding Method Thermal Class Film Grade Place of Origin
EICCAW-1B/200 CCA Alcohol Soluble 200 1B Zhejiang
EICCAW-2B/200 CCA Alcohol Soluble 200 2B Zhejiang
EICCAW-GB/200 CCA Alcohol Soluble 200 GB Zhejiang
EICCAWY3-1B/200 CCA Hot Air 200 1B Zhejiang
EICCAWY3-2B/200 CCA Hot Air 200 2B Zhejiang
EICCAWY3-GB/200 CCA Hot Air 200 GB Zhejiang


Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.


Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.


Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!


Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.


Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
