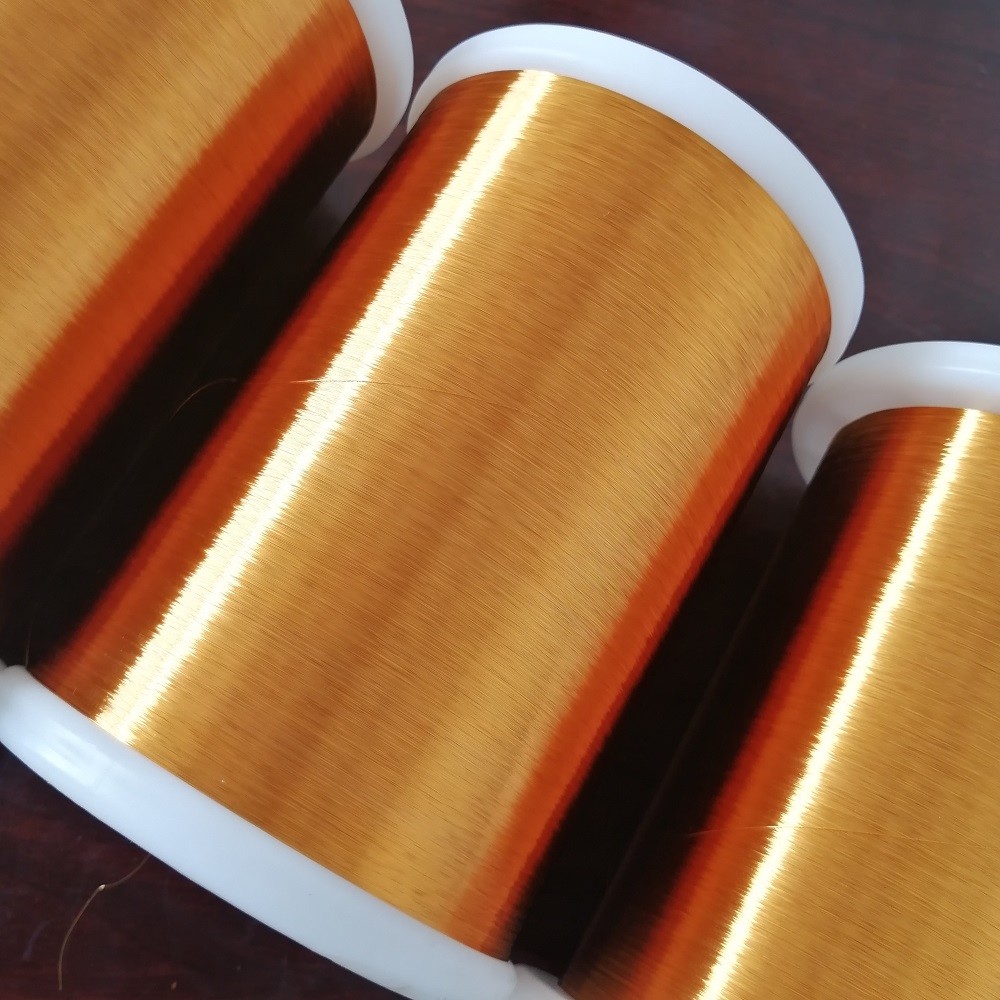

0.11mm Voice Coil Wire Self Bonding Copper Clad Aluminum Wires
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021430110 | Name | Self Bonding Polyesterimide Enameled CCA Wires |
|---|---|---|---|
| Bond Coat | Solvent | Diameter | 0.11mm |
| AWG | 41 | Film Grade | 1B |
| High Light | 0.11mm Voice Coil Wire,1B Copper Clad Aluminum Wires,AWG 41 Voice Coil Wire |
||
Product Description
Self Bonding Copper Clad Aluminum Wires 0.025-0.8mm For Voice Coil Wire
Main Features:
This product provides high cut through, excellent heat shock and high heat resistance characteristics, the resistivity is higher but density is lower than those of copper. The biggest advantage is that its weight is 3 times lighter than that of copper so that the production cost can be decreased greatly.
Enameled wire is a main kind of winding wire, which is composedof conductor and insulating layer.The bare wire is annealed and softened, then painted and baked for many times.As a special kind of enameled wires, self bonding enameled wireis easy to be made into coils because of its special processability.The winding coil can be bonded to form after heating or solventtreatment. So the self-bonding enameled wire is very popularand widely used in the manufacturing of various complex or frameless electromagnetic coils.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
Specification:
| Type | Polyester | Modified Polyester | Polyurethane | Polyesterimide | Polyamide-imide | Polyamide |
| Characteristics | Good heat resistance and mechanical strength. | High mechanical strength, good elasticity, scratch resistance, adhesion, electrical properties and solvent resistance | Solderability(no need to remove the insulation). | Good thermal shock resistance and refrigerant resistance. | More comprehensive performance, with high heat resistance, mechanical properties, refrigerant resistance and chemical resistance | Highest heat class |
| Low cost. | High frequency resistance and dyeability | Excellent chemical resistance, abrasion resistance | High heat resistance, good solvent and refrigerant resistance |
FAQ:
Q1:What's self-bonding enamelled copper wire?
A:Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.
Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.
Q3:What's the main market of your company?
A:We have customers all over the world.
Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
