0.06mm Electrical Motor Thin Insulated Copper Wire Transformer Selfbonding Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011210060 | Product Name | Self Bonding Enameled Copper Wire |
|---|---|---|---|
| Coating | Polyamideimide Composite Polyester | Conductor Material | Pure Copper |
| OEM | Yes | ||
| High Light | 0.06mm thin insulated copper wire,Self bonding enameled copper wire,Electrical motor thin insulated copper wire |
||
Product Description

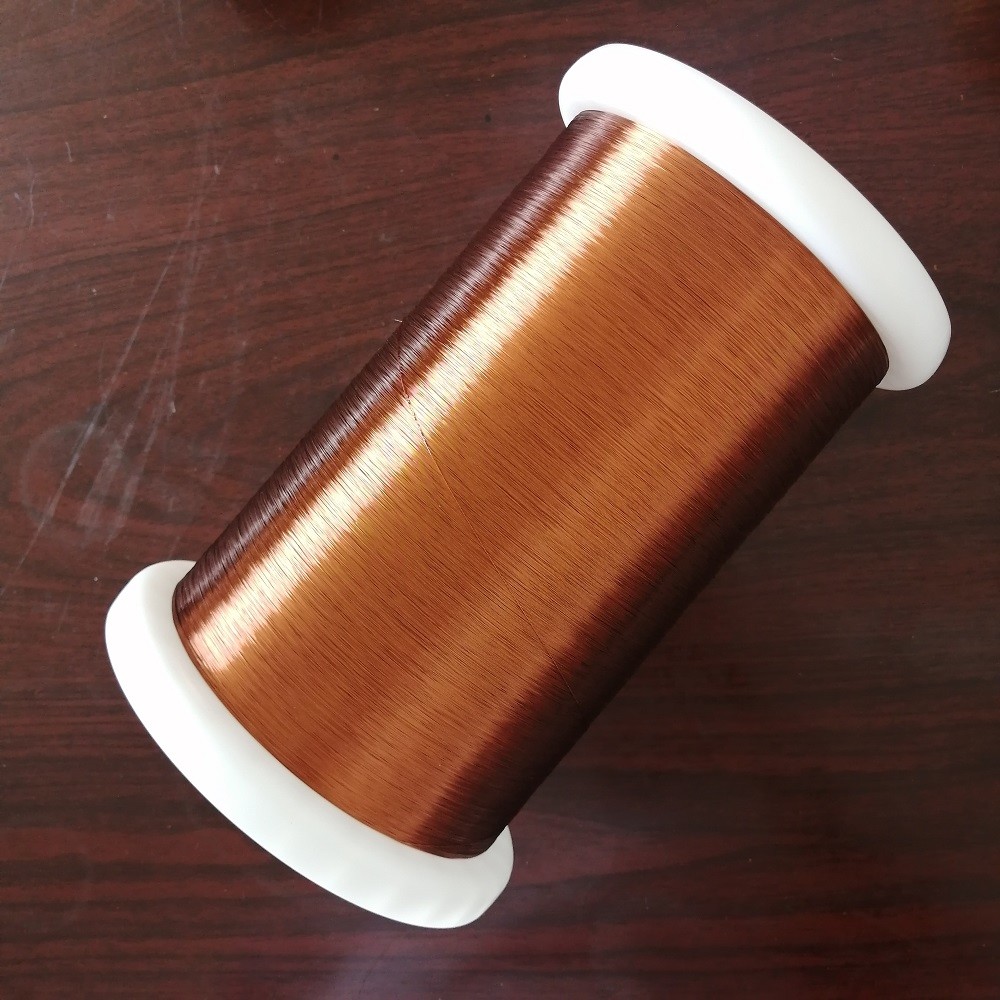

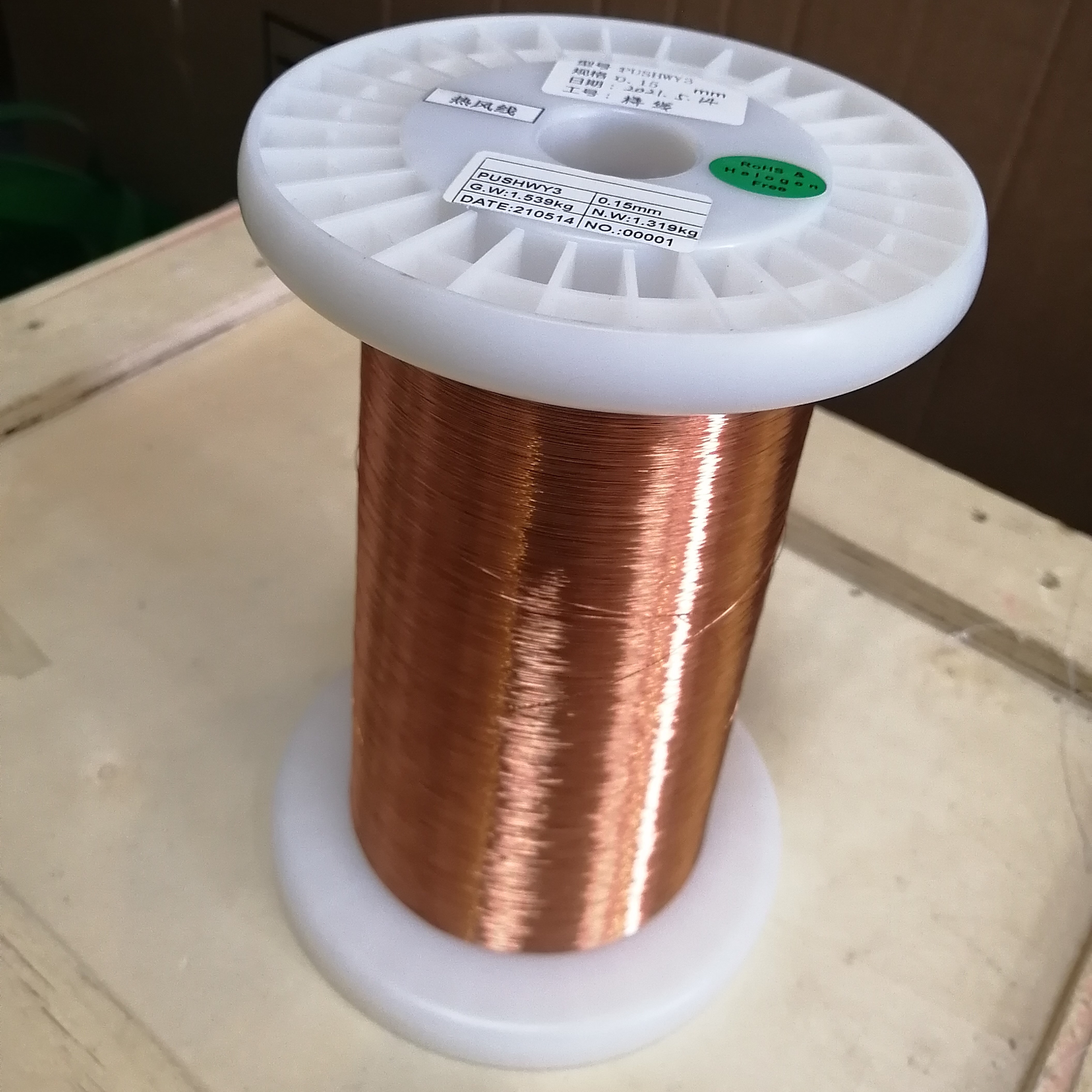

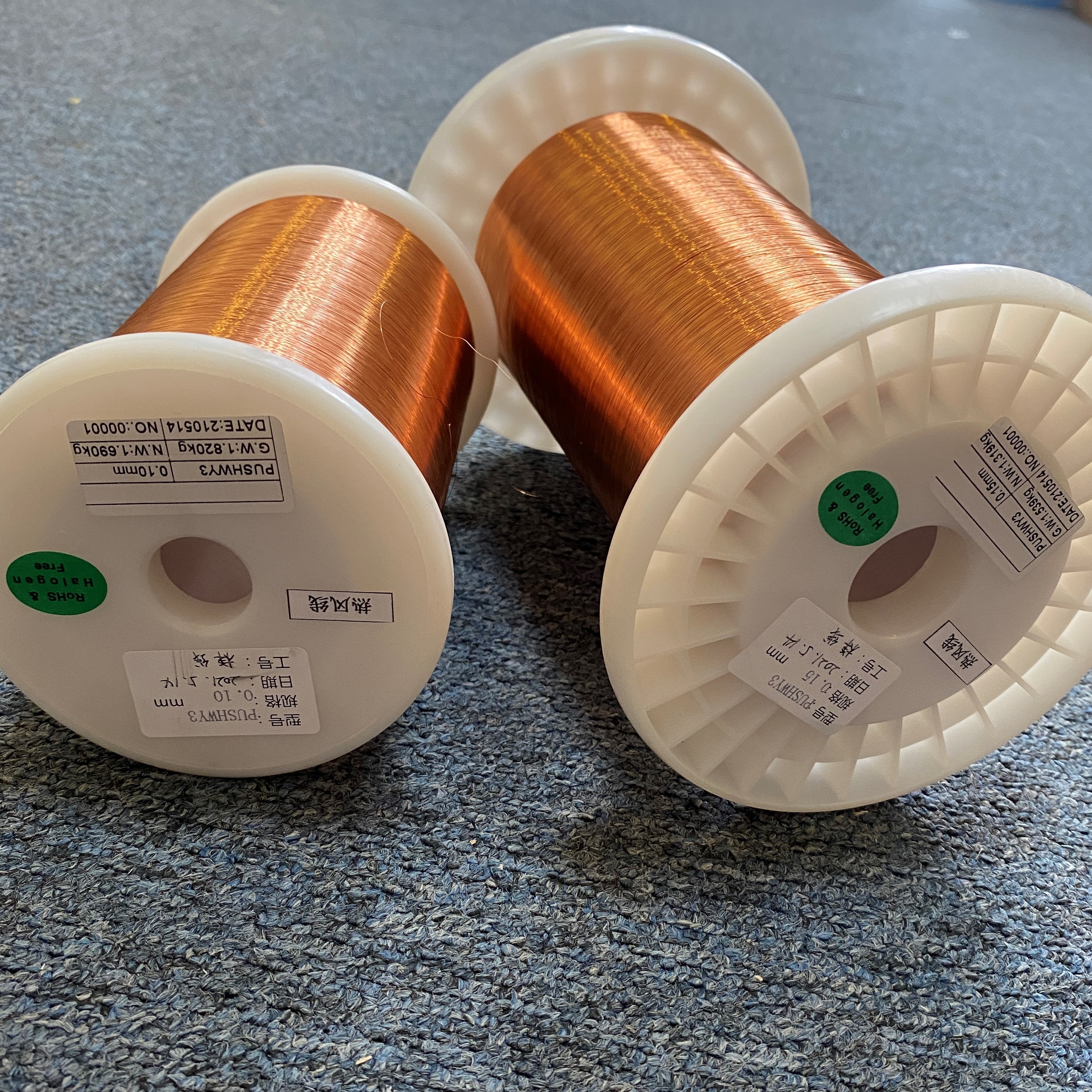

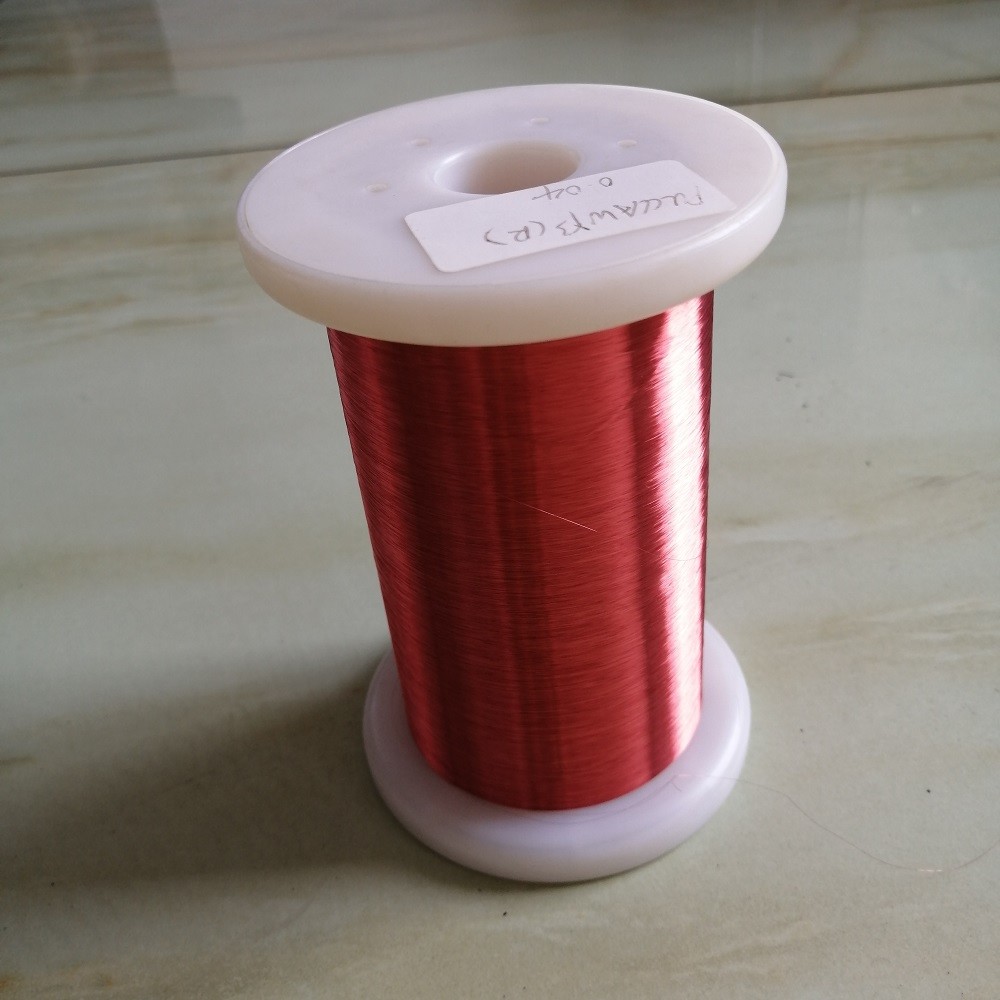

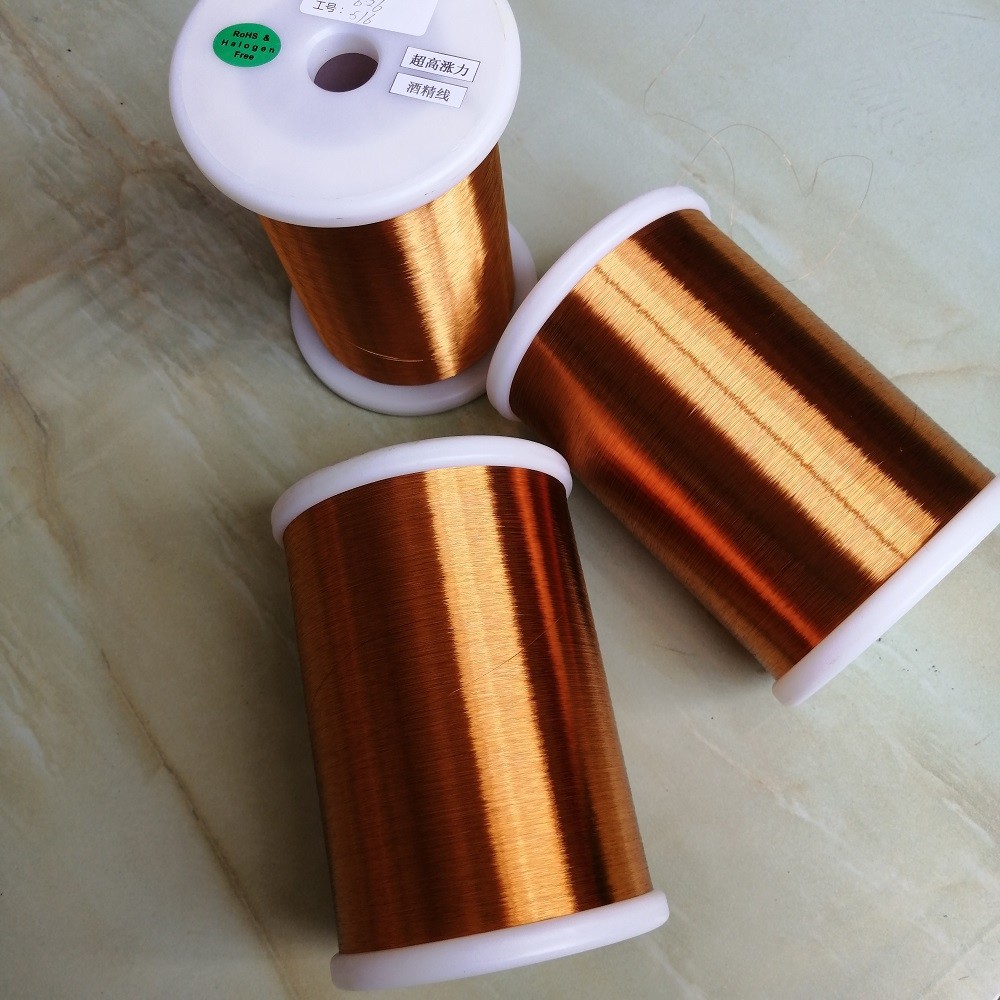

0.06mm Electrical Motor Thin Insulated Copper Wire
FEATURES:
The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.
Applications:
such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.
Enameled wire is a main kind of winding wire, which is composedof conductor and insulating layer.The bare wire is annealed and softened, then painted and baked for many times.As a special kind of enameled wires, self bonding enameled wireis easy to be made into coils because of its special processability.The winding coil can be bonded to form after heating or solventtreatment. So the self-bonding enameled wire is very popularand widely used in the manufacturing of various complex or frameless electromagnetic coils.
We supply various types of special self-bonding enameled wiresmainly, including copper-clad aluminum self-bonding wires,alloyself-bonding wires, self-bonding stranded wires, silver-platedwires,240 grade high temperature self-bonding wires,etc. Weproduce all kinds of alloy self-bonding wires of 0.02mm-0.10mm,as well as copper-clad aluminum ultra-high tension self-bonding wires and copper self-bonding wires of 0.04mm-0.90mm.
Specification:
| Model Number | Conductor Material | Conductor Diameter(mm) | Bonding Method |
| AISVW-1B/200 | Copper | 0.04-0.90 | Alcohol Soluble |
| AISVW-2B/200 | Copper | 0.04-0.90 | Alcohol Soluble |
| AISVW-GB/200 | Copper | 0.04-0.90 | Alcohol Soluble |
| AISVW-1B/220 | Copper | 0.04-0.90 | Alcohol Soluble |
| AISVW-2B/220 | Copper | 0.04-0.90 | Alcohol Soluble |
| AISVW-GB/220 | Copper | 0.04-0.90 | Alcohol Soluble |
FAQ:
Q1:What's diameters available of the products?
A:We specialize in fine and ultra fine enamelled copper and CCA wires, diameter available of our products is 0.02-0.90 mm.
Q2:What certificate do you have?
A:We have ISO9001, 14001, SGS, REACH and UL certificates.
Q3:Is possible to get any sample of self bonding enamelled copper wire that you have in production?
A:Of course you can!
Q4:Where is your factory located?
A:Our factory is located in Jiaxing City, Zhejiang Province, China.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
