0.08mm Enamelled Round Copper Wire Heat Bondable Self Bonding Wire IEC

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number AISVW-1B/200-0.08
Minimum Order Quantity 30 Kg
Price Negotiation
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No. 30011210080 Insulation Material Polyamideimide Composite Polyester Or Polyesterimide
Class 200 Conductor Type Copper
Color Original Standard JIS/NEMA/IEC
High Light

0.08mm Enamelled Round Copper Wire


40 awg magnet wire IEC


43 SWG Enamelled Round Copper Wire

Leave a Message
Product Description

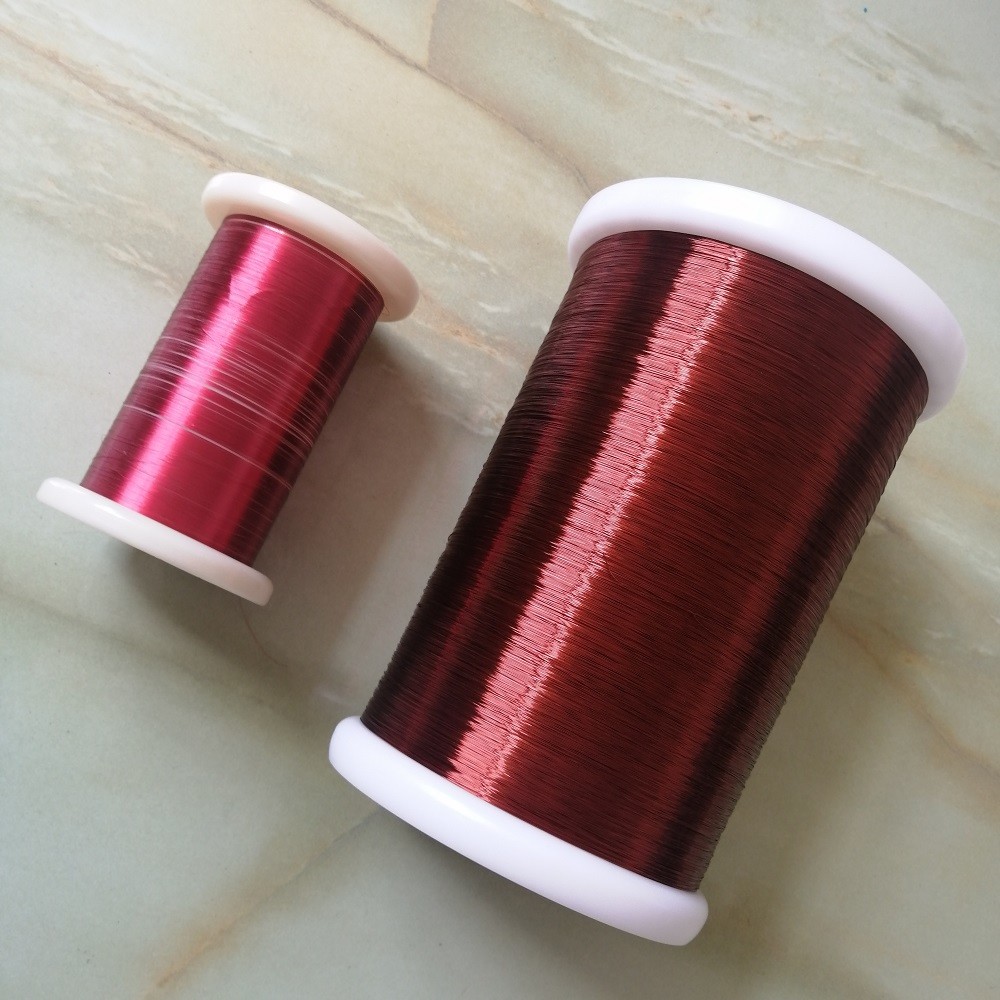

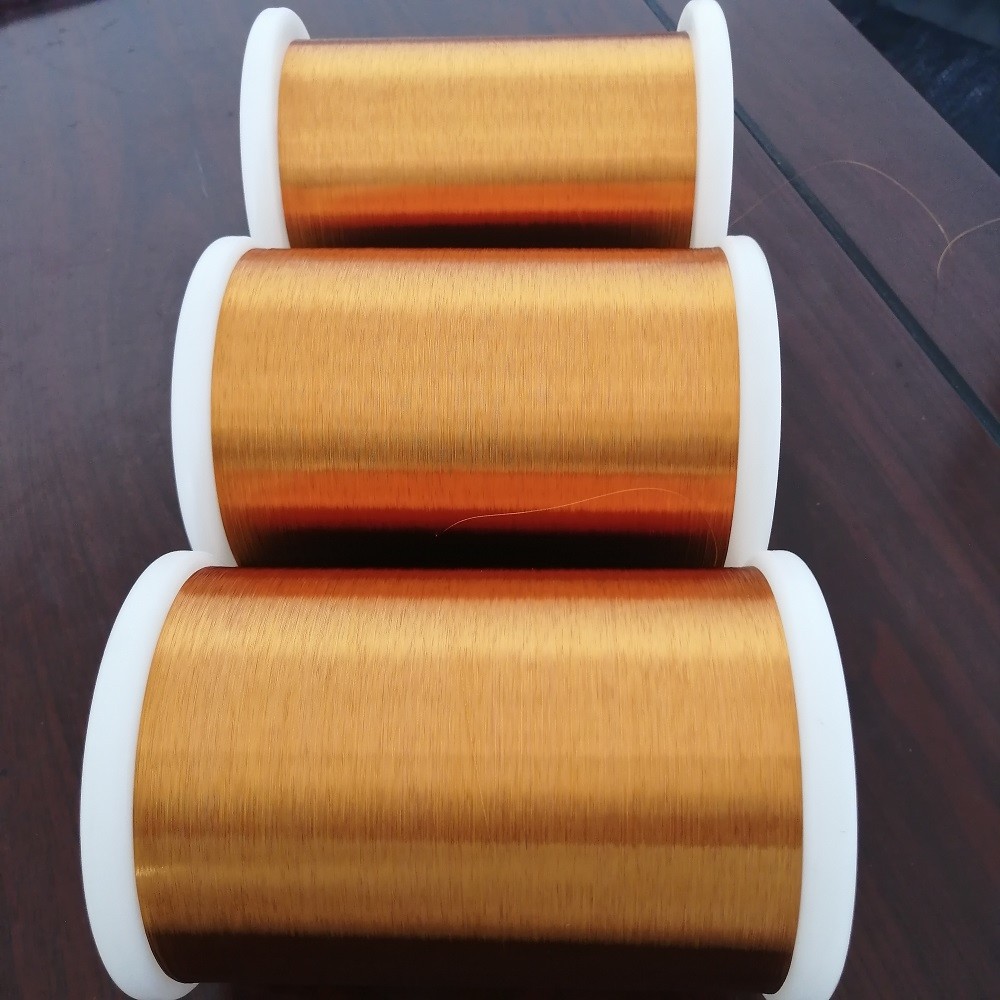

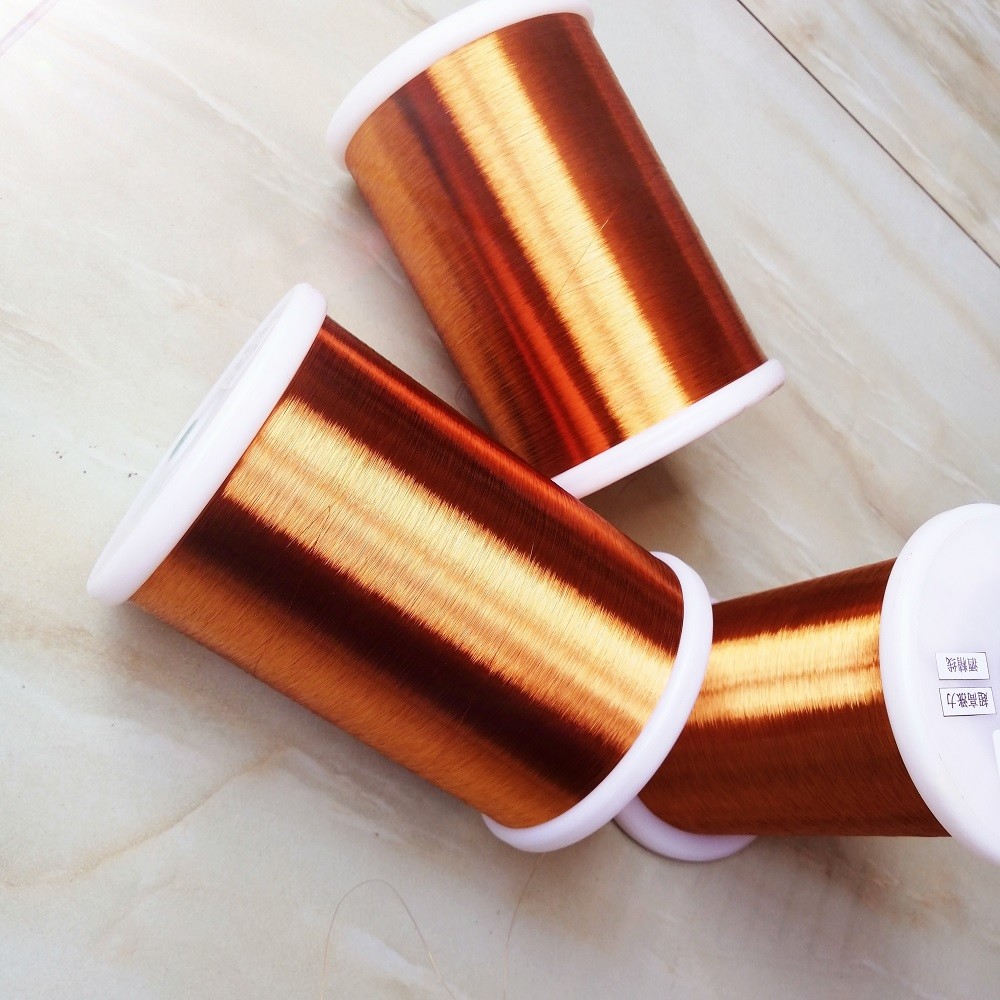

Enamelled Round Copper Wire 0.08mm Heat Bondable Self Bonding Wire IEC Standard



Higher Flexibility due to lower elastic modulus
Better Solder ability
Suitable for windings that are subjected to constantly high temperature and mechanical stress

Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.
Superior ''Q'' characteristic at high frequencies.

By making the micrograph of the section of the test coil, it can be observed that the interturns of the self-adhesive enameled wire coil are firmly glued together after forming.Because of composite self-adhesive coating enameled wire is heated, its outer layer can melt solidification painting, the turn-to-turn bonding layer permeability interact with each other, each other to make wire surface more viscous layer coating, there is no obvious adhesion interface between conductor, it also reduce wire bonding between the parts of stress concentration, to enhance the bond strength.
With the assistance of our advanced technology, we offer quality range of Copper Strips. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.



Model Number Conductor Material Bonding Method Thermal Class Film Grade Brand Name
AISVWY3-1B/200 Copper Hot Air 200 1B CHINGCUNG
AISVWY3-2B/200 Copper Hot Air 200 2B CHINGCUNG
AISVWY3-GB/200 Copper Hot Air 200 GB CHINGCUNG
AISVWY3-1B/220 Copper Hot Air 220 1B CHINGCUNG
AISVWY3-2B/220 Copper Hot Air 220 2B CHINGCUNG
AISVWY3-GB/220 Copper Hot Air 220 GB CHINGCUNG


Q1:What's self-bonding enamelled copper wire?
A:Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.


Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.


Q3:What's the main market of your company?
A:We have customers all over the world.


Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.


Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
