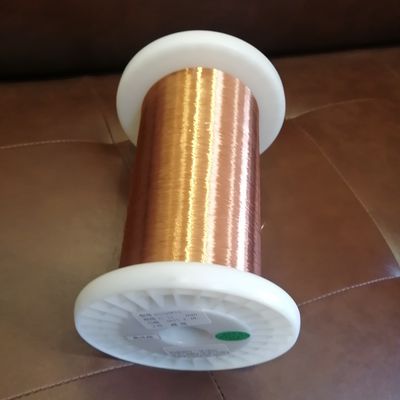

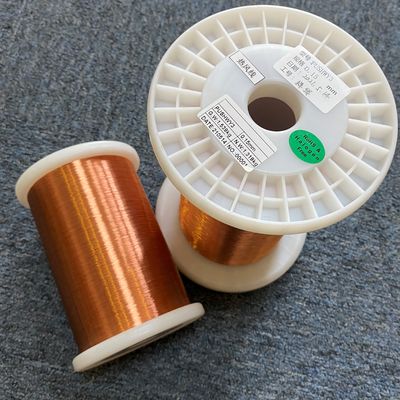

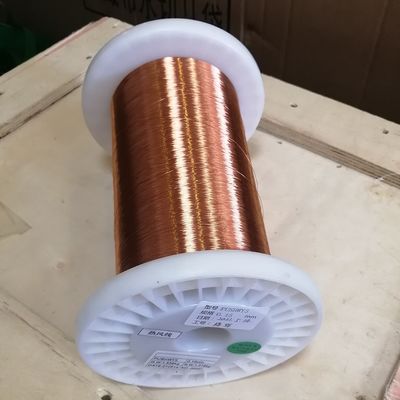

Hot Air Self Adhesive Polyester Enameled Copper Wire 0.075mm Class 130/155 B/F

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PESVW-2B/155-0.075
Minimum Order Quantity 30 Kg
Price USD 15.90/Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No 30011251075 Product Name Class155 Self Adhesive Polyester Enamelled Copper Wires
Conductor Material Copper Insualtion Polyester(PEW)
Type Round Copper Wire Enamel Thickness 1B/2B/GB
Thermal Grade 130/155 Bonding Method Alcohol
High Light

Polyester Enameled Copper Wire 0.075mm


PEW coated magnet wire


CHINGCUNG Polyester Enameled Copper Wire

Leave a Message
Product Description

Hot Air Self Adhesive Enameled Copper Winding Wire 0.075mm Class 130/155 B/F


Self bonding wire:
Enameled wire paint is a very important insulating material in electrical engineering, it is directly used for the insulation of live conductor, so its performance plays a decisive role in the whole coil insulation system.In this century 40 time, as a result of the appearance of the TV deflecting coil with complex shape, developed subsequently self stickiness enameled wire paint, with this paint again besmear in with other enameled wire paint for primer on the enameled wire, and become new self stickiness enameled wire.Since then, the varieties of self-adhesive enameled wire and self-adhesive enameled wire have been increasing, and the scope of application has been gradually expanded to instrument windings, micro-motors, small motors, microwave ovens, electromagnetic cookers, disk motors, automobile motors.


1.Solid enough, the wire is not easy to be broken
2.Insulation thickness can be customized
3.Wire can reach almost 0 pinhole
4.High consistency
5.The wire is even and tidy, which is convenient for users to wind
6. Low temperature soldering
7. Bonding method options: Hot air,Solvent and others




Characteristics Technical requests Conclusion
Sample 1 Sample 2
Adhesive Coating layer is good OK OK
Cut-through 230 2mins no breakdown OK OK
Heat Shock 200±5/30min no crack OK OK
Solder Ability 390± 5 2Sec Smooth OK OK




Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.


Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese


Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.


Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.


Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
