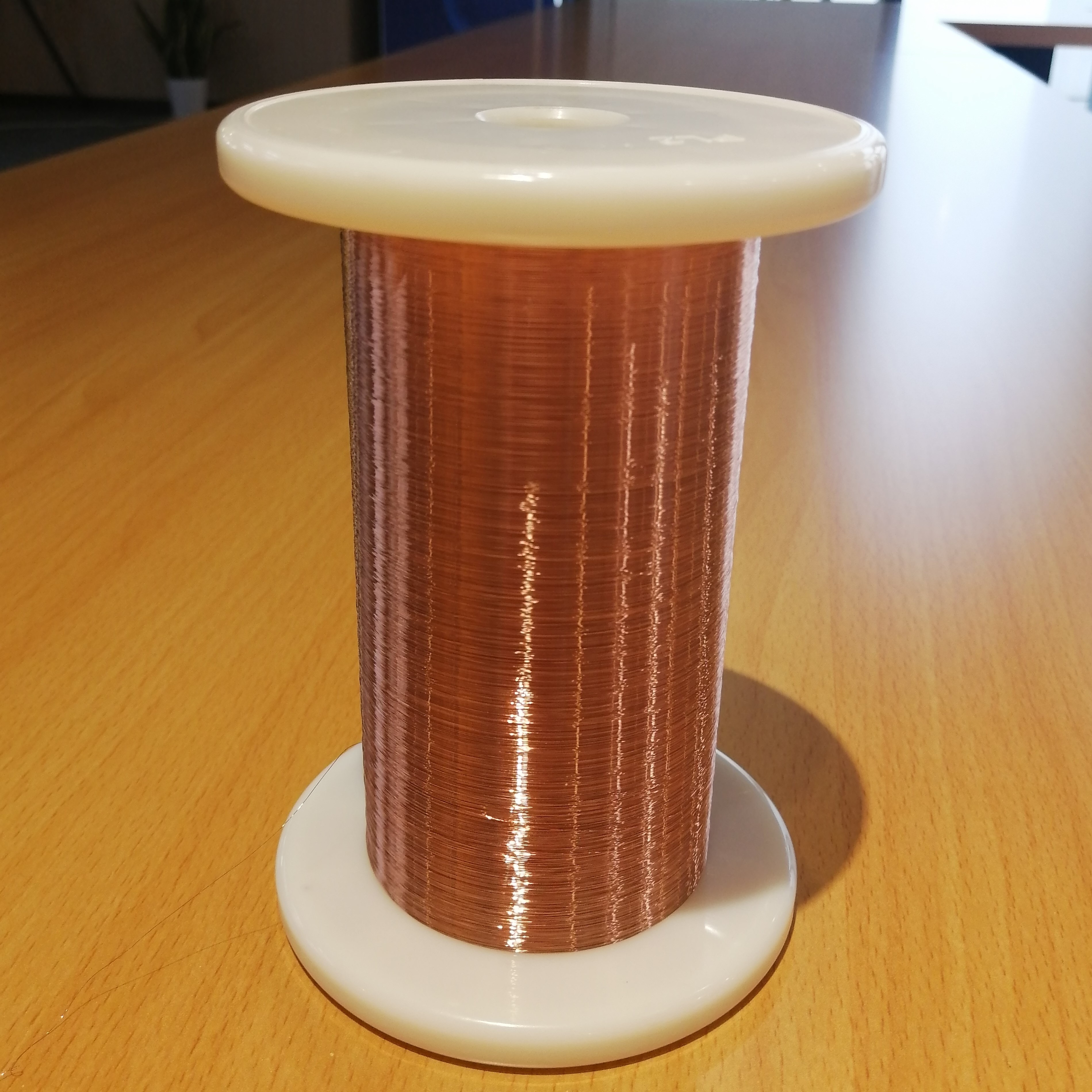

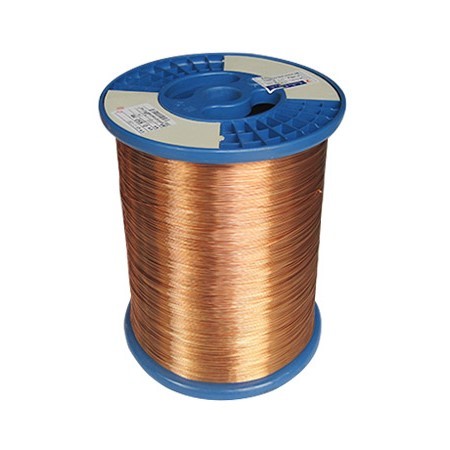

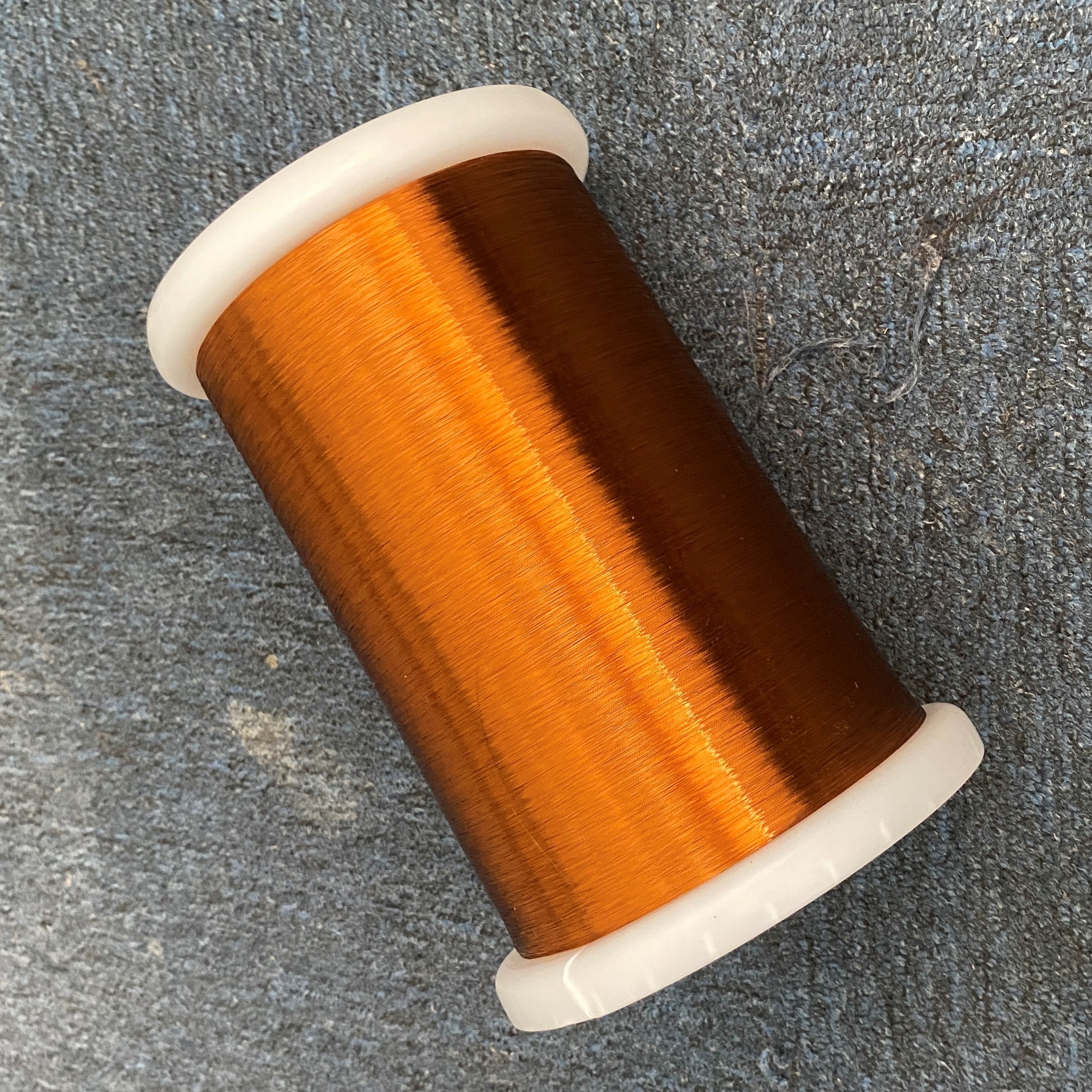

Class 155 Enameled Round Copper Wire 0.085mm Alcohol Soluble For Speaker
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PESVW-2B/155-0.085 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 14.79/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011251085 | Product Name | 130°,155° Self Bonding Copper Wire |
|---|---|---|---|
| Conductor Type | Round Copper | Insulation | PEW/Polyester |
| Type | Round Copper Wire | Film Grade | 1B/2B/GB |
| Size | 0.04-0.90mm | Application | Coils, Windings, Voice Coils |
| High Light | Class 155 enameled round copper wire,0.085mm speaker copper wire,enameled round copper wire 0.085mm |
||
Product Description
Class 155 Self Adhesive Enameled Round Copper Wire 0.08mm Alcohol Soluble Customization For speaker
Product features:
Product Description:
Like ordinary enameled wire, self-adhesive enameled wire has good workability, which is measured from windability, formability and insertability.Winding property refers to the ability of the winding wire to resist mechanical and electrical damage in the process of winding the coil.Formability refers to the ability to withstand bending and maintain the shape of the coil. When the shape is good, the shape is unchanged. After being removed from the winding machine, the coil can maintain various angles, the rectangular coil will not be drum shaped, and the single line will not jump out.Embeddedness refers to the ability to embed a slot.
Our company can according to the European IEC standard, the United States NEMA standard, The Japanese JIS standard, the Chinese GB standard or according to the customer's special technical requirements or according to the customer to provide the current supplies model, sample line, specialized for the development and production of all kinds of high-quality enameled wire to meet customer needs.Products are widely used in IC induction card, voice coil, microphone, receiver, vibration motor, DY coil, computer hard drive, laser head, buzzer, inductance plug-in, induction cooker coil, micromotor, and other fields, the quality reaches the domestic level, and can provide high quality, fast, professional technical services.
Specification:
| Name | Self adhesive polyester enamelled round copper wires |
| AWG | 19-46 |
| Thermal class | B 130 ºC, F 155 ºC |
| Standard | GB/T6109.1-2008 |
| GB/T6109.10-2008 | |
| GB/T6109.2-2008 | |
| IEC6031-20, NEMA, JIS C3202 available. | |
| Application | 1.Applicable to the production of higher temperature motor. 2.Electrical winding coil. Can be used for relays, micro-motor, small transformers, ignition coil, water valve, communication equipment with the coil. |
| 2. Due to direct welding property,widely applied to electrical and communications equipment which with more welding hear operating and complex circuit . The enameled wire of the special thick film can be used for vertical and low voltage coils in color TV. Applicable to relays, micro-motors, small transformers and communications equipment. | |
| Feature | 1.Has good flexibility |
| 2.Excellent insulation properties | |
| 3.Direct welding performance | |
| 4.High frequency performance, good moisture resistance. |
FAQ:
Q1:What can we buy from you?
A:Self Bonding Enamelled CCA Wire, Self Bonding Enamelled Aluminum Wire, Self Bonding Enamelled Copper Wire, etc.
Q2:What services can you provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DAP;
Accepted Payment Currency: USD, EUR, GBP,CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal.
Language Spoken:English,Chinese
Q3:How long is your delivery time?
A:Generally it is 5-7 days if the goods are in stock, or it is 10-15 days if the goods are not in stock. It also depends on the order quantity.
Q4:How can you guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q5:Do you provide after-sales service?
A:Yes. If there is any quality problem to our products, please submit proof files, pictures or videos to us, we will investigate and give you a solution.
