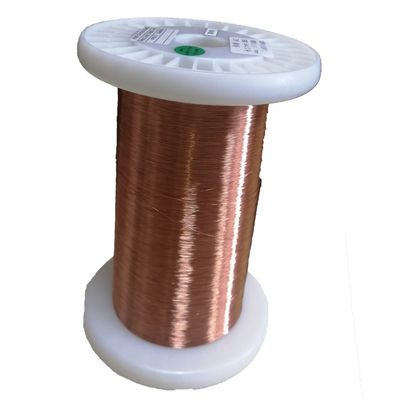

Copper Clad Aluminum Self Adhesive Enamelled Copper Wires 0.14mm
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | EICCAW-1B/200-0.14 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 72.22/Kg |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021430140 | Insualtion | Polyesterimide |
|---|---|---|---|
| Conductor Material | CCA | Class | 180(H) |
| Bonding Method | Hot Air/Alcohol Soluble | Color | Red/Green/Normal |
| Feature | High Breakdown Voltage | OEM | Yes |
| High Light | Self Adhesive Enamelled Copper Wires,CCA winding copper wire,Enamelled Copper Wires 0.14mm |
||
Product Description
180-200℃ Copper Clad Aluminum Self Adhesive Enamelled Copper Wires 0.14mm For Magnetic Induction Coils
Product Description:
(CCA) is a bimetallic compound consisting of an aluminum core and a concentric copper cladding.
This combination of copper and aluminum provides a wire with optimum properties of both metals.The aluminum core reduces the weight of the CCA to almost that of pure aluminum wire.Furthermore,the copper cladding increases the conductivity and provides good solderability.
Feature:
Hot wind and alcohol self bonding CCA provide very good experience of coil winding.
Material import from France, that provide very high quality.
Here we only provide high quality product to ensure every customer's satisfication.
Specification:
| Brand name | CHINGCUNG | Bonding Method | Alcohol Soluble/Hot Air |
| Material type | copper clad aluminum | Film Grade | 1B/2B/3B |
| Size Range | 0.04-0.90mm/AWG 19-46 | Insulation | polyesterimide |
| Thermal class | 200 | Shape | Round |
| Pin Hole | 0 | Color | Natural Or According To Customers |
| Spool | 5kgs/spool, 10kgs/spool, 20kgs/spool | Standard | JIS,NEMA,IEC ,GB |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Do you have your own R&D team?
A:Yes, we can customize products as your requirements.
Q3:What's the main market of your company?
A:We have customers all over the world.
Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
Q5:How does your factory do regarding quality control?
A:We have a special QC department, Quality inspection team including incoming material, process and finished product inspection.
