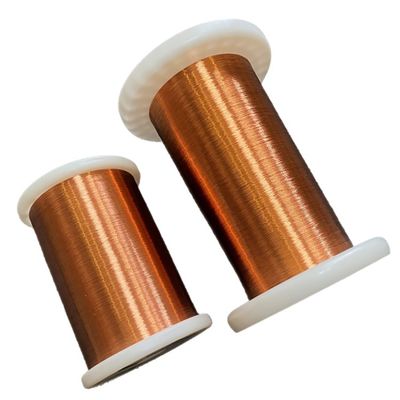

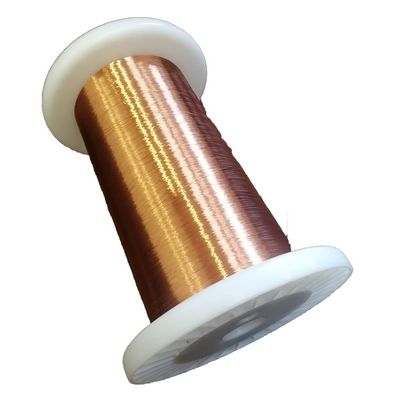

Class 155 Self Bonding CCA Copper Coated Aluminum Wire For Speaker Voice Coil
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | PECCAW-GB/155-0.15 |
| Minimum Order Quantity | 30 Kg |
| Price | USD 66.67/Kg |

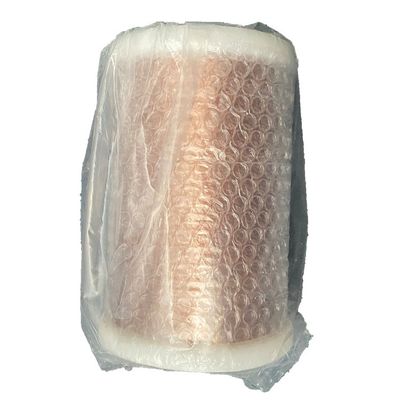

| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30021452150 | Product Name | Modified Polyester Magnet Wires |
|---|---|---|---|
| Insualtion | PEW | Type | Self Adhesive Wire |
| Diameter | 0.15mm | Film Grade | Grade GB |
| Application | Heating,Transformer,motor,windings | Color | Pink/Blue/Black/Yellow And More |
| High Light | CCA copper coated aluminum wire,0.15mm polyester magnet wire,Class 155 copper coated aluminum wire |
||
Product Description
Thermal Class 155 Self Bonding CCA Copper Coated Aluminum Wire For Speaker Voice Coil
Application:
self bonding inductance coils:
Inductance coils of products such as toys, sensors,laser magnetic heads, chip inductors,
clocks, high frequency magnetic core transformers.
voice coils:
All kinds of trumpet voice coils
general motors coils:
Motor coils such as electric motors, servo motors, submersiblepump motors, draining
pump motors, brushless motors.
small motors coils:
Small vibration motors(flat,columnar) coils: telephone motors, toys motors, airplane model
motors, small household appliances motors.
Features:
1.Low density allows coil weight reduction. only 50% weight of copper at the same length
2.Easy soldering due to copper cladding
3.Higher conductivity compared to aluminum
Specification:
| Model Number | PECCAW-1B/155 | PECCAW-2B/155 | PECCAW-GB/155 | PECCAWY3-1B/155 |
PECCAWY3-2B/155 |
PECCAWY3-GB/155 |
| Conductor Material | Copper Clad Aluminum | Copper Clad Aluminum | Copper Clad Aluminum | Copper Clad Aluminum | Copper Clad Aluminum | Copper Clad Aluminum |
| Conductor Diameter(mm) | 0.04-0.90 | 0.04-0.90 | 0.04-0.90 | 0.04-0.90 | 0.04-0.90 | 0.04-0.90 |
| Bonding Method | Alcohol Soluble | Alcohol Soluble | Alcohol Soluble | Hot Air | Hot Air | Hot Air |
| Thermal Class | 155 | 155 | 155 | 155 | 155 | 155 |
| Film Grade | 1B | 2B | GB | 1B | 2B | GB |
| Brand Name | CHINGCUNG | CHINGCUNG | CHINGCUNG | CHINGCUNG | CHINGCUNG | CHINGCUNG |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
