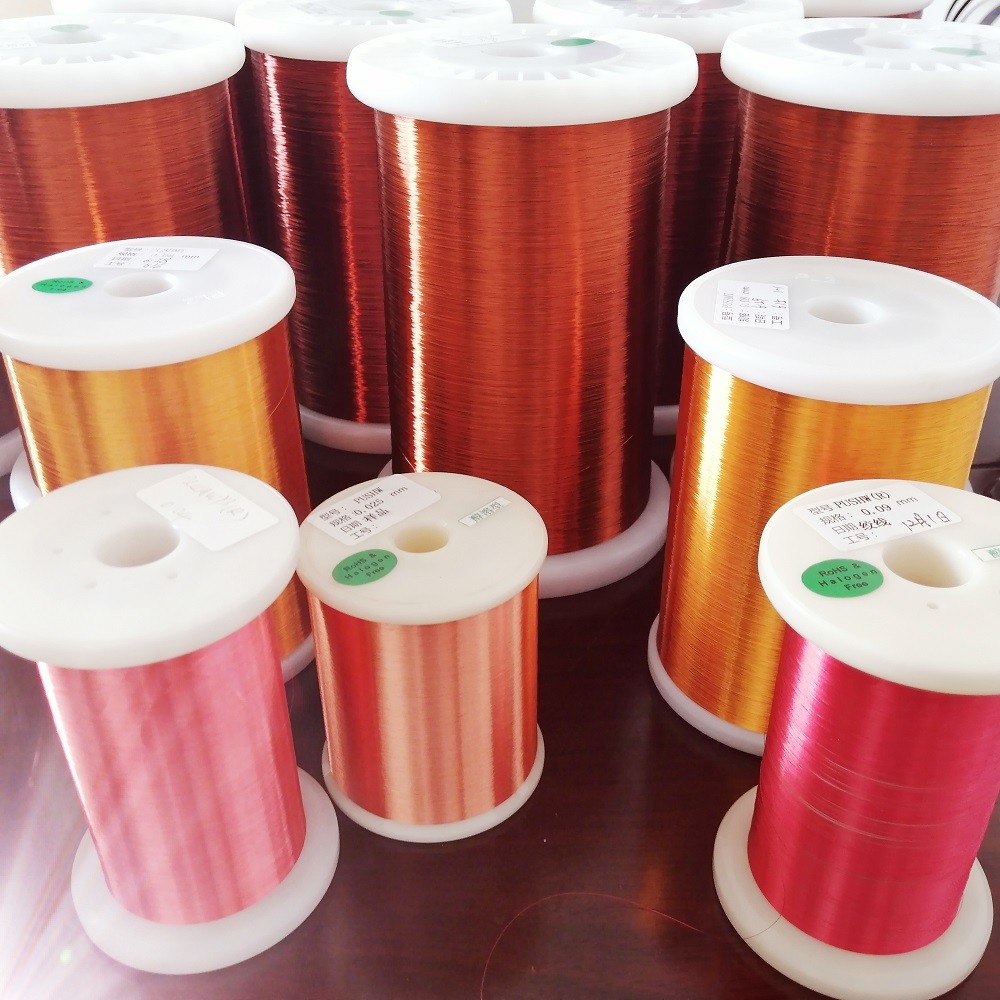

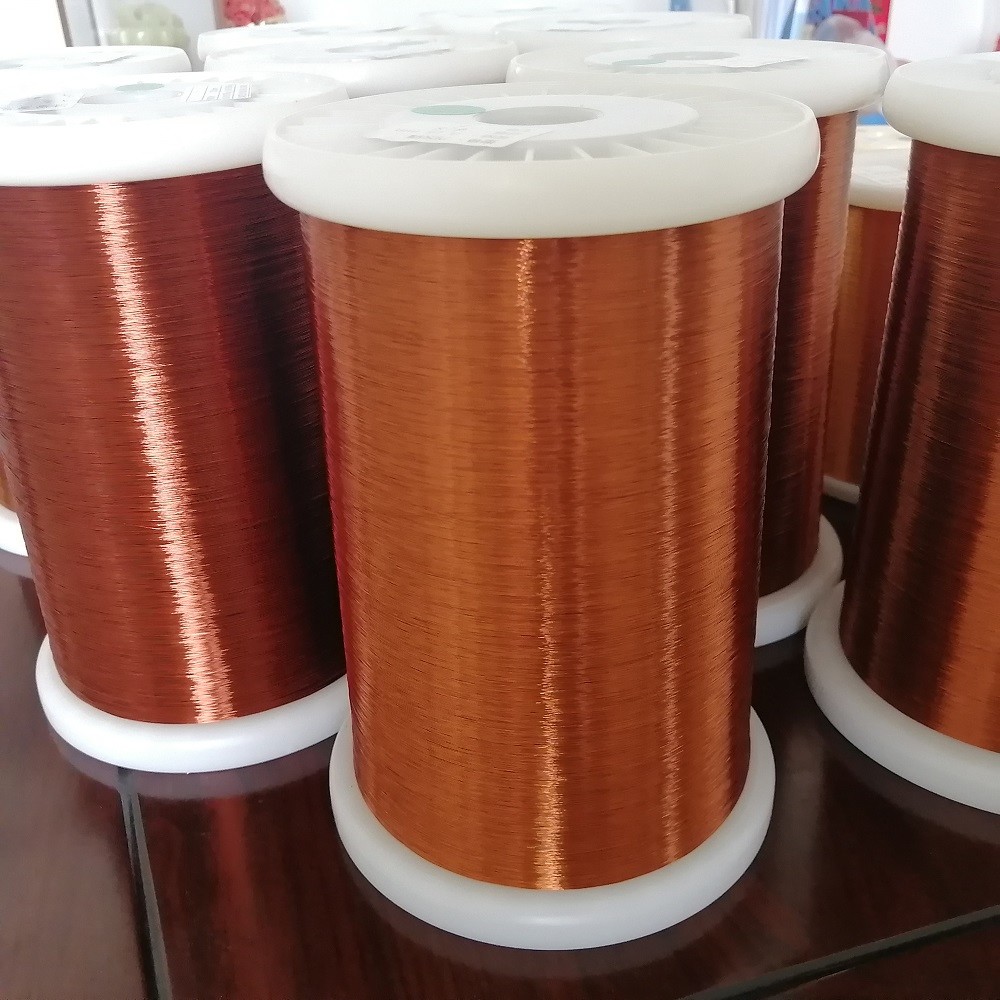

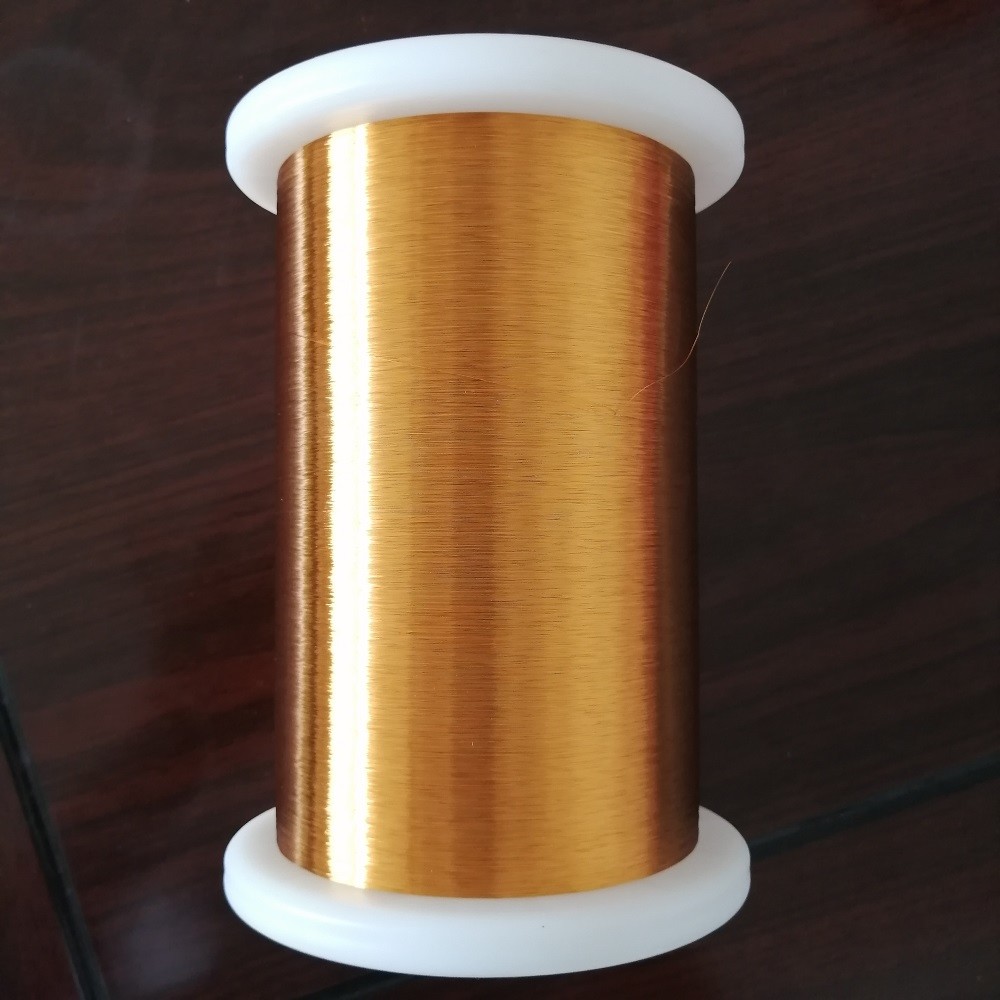

0.06mm Polyamideimide Enamelled Copper Winding Wire For Small Motor
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-1B/200-0.06 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011220060 | Product Name | PE/AIW Self Bonding Enameled Round Copper Wires |
|---|---|---|---|
| Thermal Rating | Class 200 | Product Diameter | 0.06mm |
| Enamel Thickness | Grade1B | Bonding Method | Hot Air |
| Conductor | Round Copper | Advantage | High Breakdown Voltage |
| High Light | Grade1B Enamelled Copper Winding Wire,Small Motor Enameled Copper Wires,0.06mm Enamelled Copper Winding Wire |
||
Product Description
Polyamideimide Composite Polyester/Polyesterimide Enameled Copper Wires For Small Motor
Product Description:
Grade 200,220high temperature resistant polyamide-imide composite polyester or polyester imide enameled wire, copper inner surface from inside to outside is arranged with tin oxide layer, silicone modified polyester insulating paint or silicone modified polyester imide insulating paint, polyamide-imide insulating paint and closed polyurethane insulating paint.Used by the above scheme, and the tin oxide layer on copper filling anti-oxidation protection, at the same time, organic silicone modified polyester varnish or organic silicon modified polyester imide insulating paint coated in tin oxide layer on prevention has strong adhesion, thus can improve the adhesion of overall film stability, and the outermost enclosed polyurethane varnish has stable mechanical, chemical properties, realize the wholeImproves the stability of enameled wire during flattening.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification
| Model Number | AISVWY3-1B/200-0.06 |
| Conductor Material | Copper |
| Conductor Diameter(mm) | 0.06 |
| Bonding Method | Hot Air |
| Thermal Class | 200 |
| Film Grade | 1B |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
