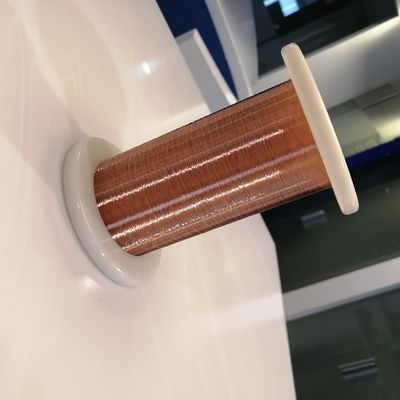

0.1mm Speaker Voice Coil Special Magnet Wires Self Bonding Wire From Hot air
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-1B/200-0.10 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011220100 | Product Name | Class 200 High Temperature Resistant Enameled Wire |
|---|---|---|---|
| Insualtion | Polyamideimide Composite Polyester/polyesterimide | Class | 200/220 |
| Film Grade | 1B/2B/GB | Conductor | Solid |
| Application | Coils, Windings, Voice Coils | Advantage | Factory Supplies |
| High Light | 0.1mm Special Magnet Wires,41 SWG Self Bonding Wire,38 AWG Special Magnet Wires |
||
Product Description
0.1mm Use Speaker Voice Coil Special Magnet Wires Self Bonding Wire From Hot air
Product Description:
Heat resistance level: 200℃ or 220℃
Specification: 0.04-0.9 mm
Soften breakdown: 320℃ or 350℃
Hot stamping: 220℃ or 240℃
Reference standard: IEC
Features: high heat resistance, high freezing, high softening breakdown, high thermal impact, thermal stability
Applications: high temperature resistant transformers, sealed motors, refrigeration compressor motors, high power motors, electromagnetic coils, heat resistant components, power tool motors.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification
| 0.1mm Self bonding polyamideimide composite polyester or polyesterimide enameled round copper wires | |
| Brand Name | CHINGCUNG |
| *Model Number | AISVWY3-1B/200-0.10 |
| Conductor Diameter(mm) | 0.1 |
| *Conductor | Copper |
| *Insulation | polyamideimide composite polyester or polyesterimide |
| *Color | Red and more |
| *Feature | High Temperature Resistant |
| *Delivery Time | 3-10 work days |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
