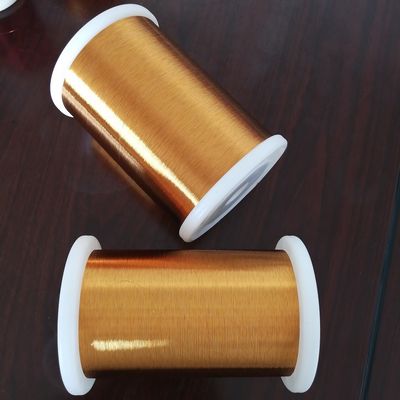

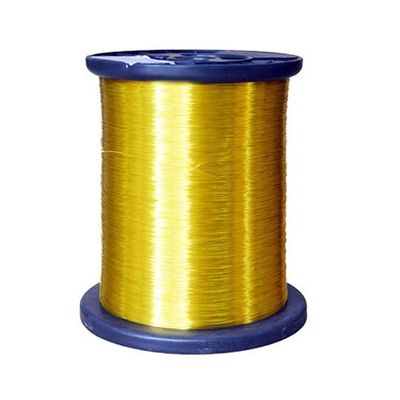

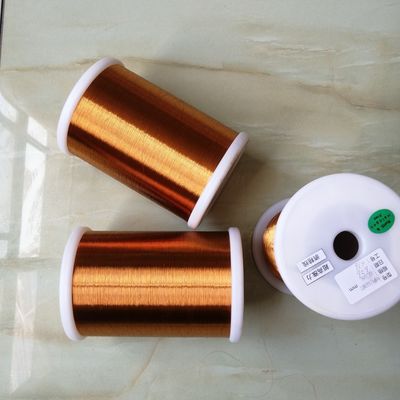

0.08mm PE/AIW Self Bonding Round Copper Wire For Magnetic Induction Coils
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | CHINGCUNG |
| Certification | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number | AISVWY3-1B/200-0.08 |
| Minimum Order Quantity | 20 Kg |
| Price | Negotiation |
| Packaging Details | 5 Kgs each roll, cartons. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T |
| Supply Ability | 50 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No | 30011220080 | Product | Polyamideimide Composite Polyester/polyesterimide Enameled Copper Wires |
|---|---|---|---|
| Insualtion Type | PE/AIW | Film Grade | 1B |
| Bonding Way | Hot Air | Conductor | Pure Copper |
| Usage | Motor,dry Transformer,generator,relays | Advantage | Superfine |
| High Light | 0.08mm Enamelled Copper Winding Wire,43 SWG Self Bonding Round Copper Wire,40 AWG Enamelled Copper Winding Wire |
||
Product Description
0.08mm PE/AIW Self Bonding Round Copper Wire For Magnetic Induction Coils
Product Description:
Polyester imide - polyamide imide composite enameled wire is made of polyester imide paint as the bottom layer, polyamide imide paint as the outer coating.It has high temperature resistance (200-220℃), freon resistance, high mechanical strength and special properties.Mainly used for fully enclosed compressors, such as refrigerator compressor, air conditioner compressor, refrigerator, ice machine, dehumidifier compressor, etc., to manufacture the windings of its motor, as well as some special purpose motors.
Sample testing:
For enameled wire customers, we can provide sample quality testing to ensure that our products can fulfill the customer's production needs before the customer orders.
Product quality:
The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.
International certification:
Our products are all up to the international certification standards, and customers who need certification can provide international certification."
Specification
| Model Number | AISVWY3-1B/200-0.08 |
| Conductor Material | Cu |
| Conductor Diameter(mm) | 0.08 |
| Bonding Method | Hot Air |
| Thermal Class | 200 |
| Film Grade | 1B |
| Insulation | polyamideimide composite polyester or polyesterimide |
| Brand Name | CHINGCUNG |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
