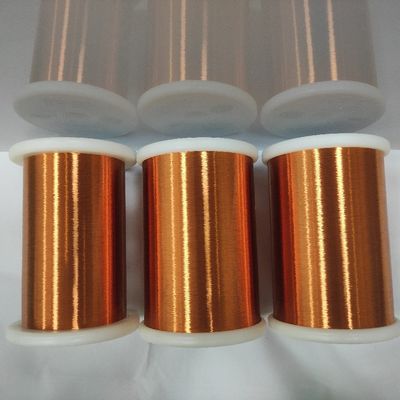

AWG 35 Class 155 Polyester Enameled Copper Wire PEW Insulation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Order No. | 30011252140 | Conductor Material | Pure Copper |
|---|---|---|---|
| Bonding Method | Alcohol Soluble | Conductor Diameter | 0.14 Mm |
| Thermal Class | 155 | Applications | Coils, Windings, Voice Coils |
| Insulation Material | Polyester(PEW) | Certification | ISO |
| High Light | Class 155 Polyester Enameled Copper Wire,AWG 35 Polyester Enameled Copper Wire,PEW Insulation Enameled Copper Wire |
||
Product Description
AWG 35 Class 155 Polyester Self Adhesive Enameled Copper Wire For Small Motor
Self-adhesive enameled wire has a composite structure, that is, in general enameled wire (baseline), coated with a layer of adhesive paint. At present, foreign countries attach great importance to the development of composite insulated enameled wire, which has the characteristics of variety and good performance. As a result of compound layer enameled wire by 2 to 3 different material of paint coating and become, compare with the wire of onefold layer, compatible with the characteristic of a variety of different paint, solved onefold material does not satisfy the characteristic of production demand. In the structure of composite layer self-adhesive enameled wire, the insulating paint is mainly to ensure the insulation performance of the line, and the two outermost adhesive paint is mainly to meet the needs of the coil forming process, play the role of adhesion and protection and enhancement of the baseline.
The application of self-adhesive enameled wire in motor windings shows that the motor windings made by self-adhesive enameled wire can meet the technical requirements of the corresponding motor and have reliable performance.Self-adhesive enameled wire can be used to manufacture motor windings, which can omit the process of soaking, save energy, eliminate pollution and reduce labor intensity. It has good technical and economic effect and is worthy of popularization and application.
Specification:
| Model Number | PESVW-GB/155-0.14 | Place of Origin | Zhejiang,China |
| Conductor Material | Copper | Brand Name | CHINGCUNG |
| Conductor Diameter | 0.14mm | Feature | High Temperature Resistant |
| Bonding Method | Alcohol Soluble | Delivery Time | 3-10 work days |
| Thermal Class | 155 | Application | Motor Winding Wire |
| Film Grade | GB | Packing | Plastic Spool |
| Insulation | Polyester | OEM | Support |
FAQ:
Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.
Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.
Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.
Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.
Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
