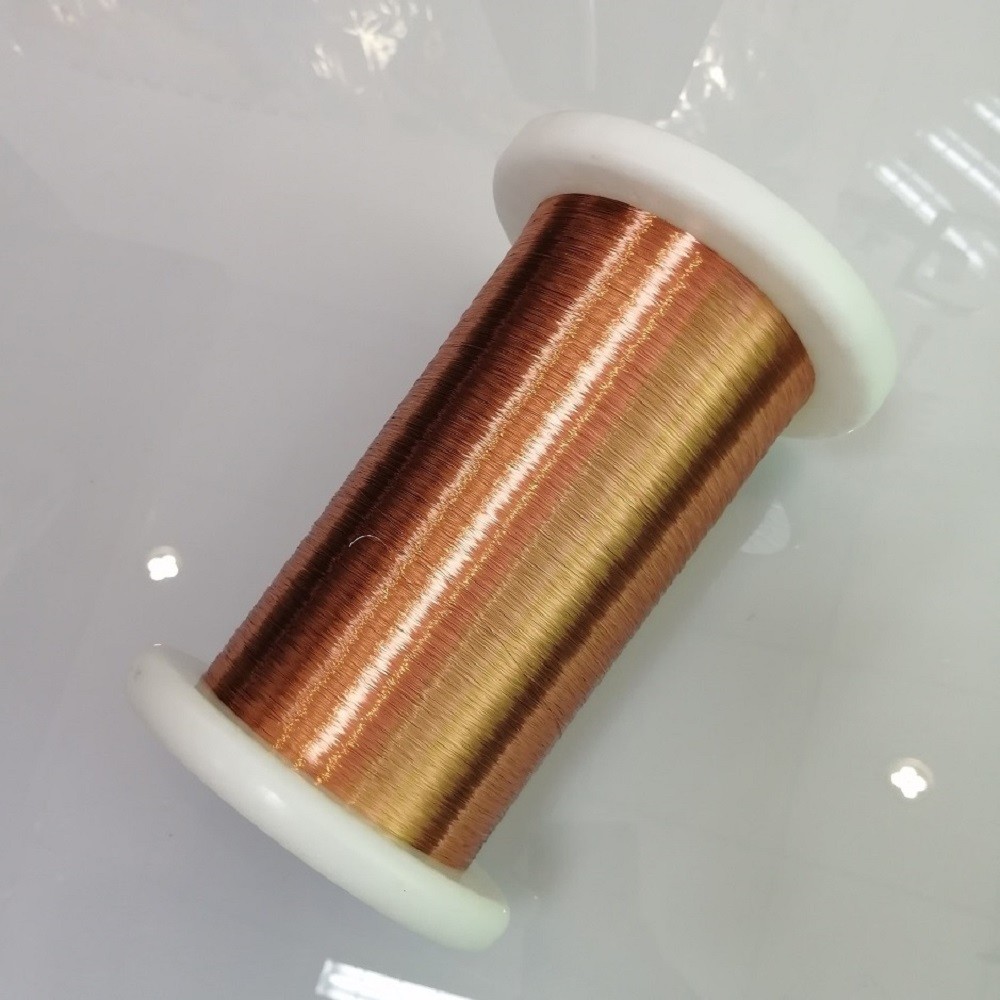

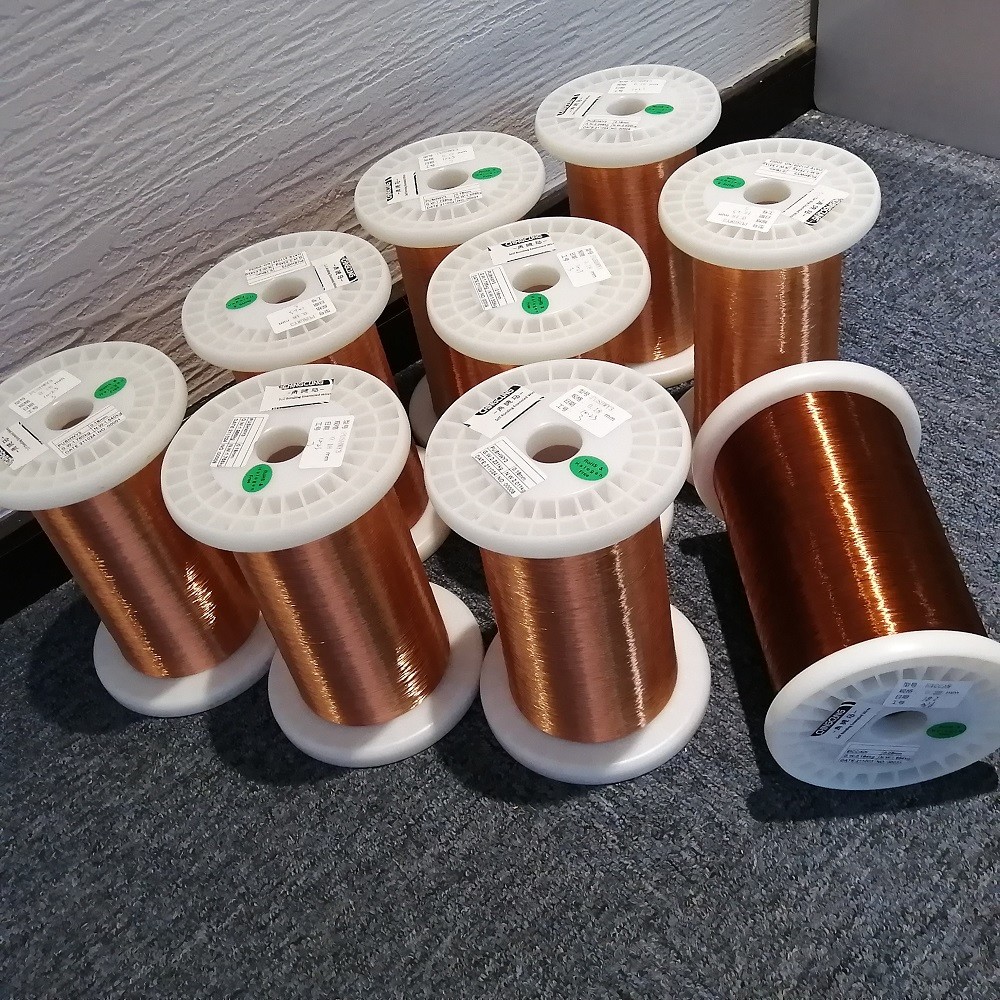

Self Adhesive Polyester Enamel Insulated Wire PEW For Transformers

Place of Origin Zhejiang, China
Certification UL/ISO9001/ISO14001/RoHS/Reach
Model Number PESVW-2B/155-0.12
Minimum Order Quantity 30 Kg
Packaging Details 5 Kgs each roll, cartons.
Delivery Time 5-7 work days
Payment Terms T/T
Supply Ability 50 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Order No. 30011251120 Product Name PEW Enamelled Copper Wires
Bonding Method Alcohol Soluble Color Original Or Customization
Thermal Class 155℃ Applications Coils, Windings
Insulation Material Polyester(PEW) Size 0.12mm
High Light

Self Adhesive Enamel Insulated Wire


Transformers Polyester Enamel Insulated Wire


PEW Polyester Enamel Insulated Wire

Leave a Message
Product Description

Film Grade 2B Self Adhesive Polyester Enamelled Round Copper Wires For Transformers


Self-adhesive wire, also known as self-melting wire, is a special type of enameled wire. The surface of the enameled wire is coated with an additional layer of self-adhesive coating. The self-adhesive layer can produce adhesive properties through high temperature or solvent excitation. The winding is formed into a tight self-fixed coil through the action of the self-adhesive layer. A cost and production advantage can be gained by using a self-adhesive line, since skeleton, tape, vertical water, or impregnation paint can be eliminated in some applications. Since stick lacquer basically has polyvinyl alcohol suo butanal, polyamide, change sex polyamide and polyester wait for a few kinds. Solvent self-adhesive is a method of self-adhesive, which is achieved by adding an appropriate solvent (such as industrial alcohol) to the wire during the winding process. Solvents may be brushed, sprayed, or coated on the windings during winding, with ethanol or methanol typically recommended. The solvent can be diluted with water, but the more water is used, the more difficult the self-adhesive process becomes.


The application of self-adhesive enameled wire in motor windings shows that the motor windings made by self-adhesive enameled wire can meet the technical requirements of the corresponding motor and have reliable performance.Self-adhesive enameled wire can be used to manufacture motor windings, which can omit the process of soaking, save energy, eliminate pollution and reduce labor intensity. It has good technical and economic effect and is worthy of popularization and application.



Model Number PESVW-2B/155-0.12 Place of Origin Zhejiang,China
Conductor Material Copper Brand Name CHINGCUNG
Conductor Diameter 0.12mm Feature Excellent Film Adhesion
Bonding Method Alcohol Soluble Delivery Time 3-10 work days
Thermal Class 155 Application Motor Winding Wire
Film Grade 2B Packing Plastic Spool
Insulation Polyester(PEW) OEM Support


Q1:Are you trading company or manufacturer ?
A:We are a manufacturer.


Q2:Are you a factory or a trader?
A:We are the factory, you are welcome to visit our factory.


Q3:How about your company’s annual production capacity?
A:Our Company’s annual production is about 1000 tons.


Q4:How about the quality?
A:We have the best professional engineer and strict QA and QC system. We have the experience of doing the self bonding enameled wires for more than 15 years.


Q5:Can you provide samples? Charge or free?
A:Yes, we can provide samples for payment, which can be sent to you by DHL express or FOB.
